  PRODUCT >> TELECOM >> AISG CABLE

AISG Connector AISG to AISG Cable AISG to D-SUB Cable AISG Cable Assembly

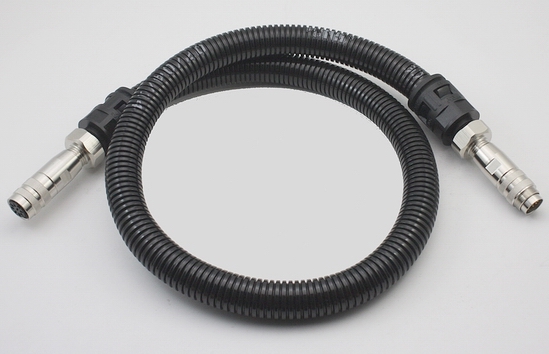

     Clmap Type AISG to AISG Cable:
The AISG control cables are used to feed data and power from the controller to the RET (remote electrical tilt) system components.

These cables are available in various lengths and are terminated with male and female connectors which allow them to be linked together to meet a required length.

GELVO recommends grounding the RET control cable at the top of the tower using a junction box. A lightning protection unit should be used at the bottom of the tower to ground the RET control cable.
      Structure Dimension:
No.
Model

Cable Length

Remark
A
  AISG/M-AISG/F-0.5M 0.5m

  AISG DIN Male to AISG DIN Female

B
  AISG/M-AISG/F-1.0M 1.0m

  AISG DIN Male to AISG DIN Female

C  AISG/M-AISG/F-3.0M 3.0m   AISG DIN Male to AISG DIN Female
D  AISG/M-AISG/F-5.0M 5.0m   AISG DIN Male to AISG DIN Female
E  AISG/M-AISG/F-6.0M 6.0m   AISG DIN Male to AISG DIN Female
F  AISG/M-AISG/F-10.0M 10.0m   AISG DIN Male to AISG DIN Female
G  AISG/M-AISG/F-15.0M 15.0m   AISG DIN Male to AISG DIN Female
H  AISG/M-AISG/F-30.0M 30.0m   AISG DIN Male to AISG DIN Female
I
 AISG/M-AISG/F-50.0M 50.0m   AISG DIN Male to AISG DIN Female
J
 AISG/M-AISG/F-60.0M 60.0m   AISG DIN Male to AISG DIN Female
K
 AISG/M-AISG/F-70.0M 70.0m   AISG DIN Male to AISG DIN Female
L
 AISG/M-AISG/F-80.0M 80.0m   AISG DIN Male to AISG DIN Female
M  AISG/M-AISG/F-90.0M 90.0m   AISG DIN Male to AISG DIN Female
N
 AISG/M-AISG/F-100.0M 100.0m   AISG DIN Male to AISG DIN Female


Electrical Specifications:
Protocol AISG 1.1 | AISG 2.0
Voltage, maximum 300 V

Mechanical Specifications:
AISG Connector A 8-pin DIN Female
AISG Connector A Body Style Straight
AISG Connector A Standard IEC 60130-9
AISG Connector B 8-pin DIN Male
AISG Connector B Body Style Straight
AISG Connector B Standard IEC 60130-9
Data Conductor Type 0.20 mm² (24 AWG) twisted pair
Power Conductor Type 0.82 mm² (18 AWG) stranded
Total Conductors, quantity 6
Color Black

Environmental Specifications:
Climatic Sequence Test Method IEC 60068-2-14
Cold Exposure Test Method IEC 60068-2-1
Damp Heat Exposure Test Method IEC 60068-2-30, Test Condition Db
Heat Exposure Test Method IEC 60068-2-2
Operating Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Rain Simulation Test Method IEC 60068-2-18, Test Condition Ra, Method 1
Relative Humidity Up to 100%
UV Resistance Test Method IEC 60068-2-5, Test Condition B
Ingress Protection Test Method IEC 60529:2001, IP67

Dimensions:
Length 1.0 m~100m
*
Diameter Over Jacket 8.0 mm

  ** The cable length can custom-made with different size.
  *** The cable connection can custom-made with different style.

Clmap Type AISG to AISG CABLE

      Injection molding type AISG to AISG Cable:

The AISG control cables are used to feed data and power from the controller to the RET (remote electrical tilt) system components.

These cables are available in various lengths and are terminated with male and female connectors which allow them to be linked together to meet a required length.

GELVO recommends grounding the RET control cable at the top of the tower using a junction box. A lightning protection unit should be used at the bottom of the tower to ground the RET control cable.

     Structure Dimension:

No.
Model

Cable Length

Remark
A
  AISG/M-AISG/F-0.5M 0.5m   AISG DIN Male to AISG DIN Female
B
  AISG/M-AISG/F-1.0M 1.0m   AISG DIN Male to AISG DIN Female
C  AISG/M-AISG/F-3.0M 3.0m   AISG DIN Male to AISG DIN Female
D  AISG/M-AISG/F-5.0M 5.0m   AISG DIN Male to AISG DIN Female
E  AISG/M-AISG/F-6.0M 6.0m   AISG DIN Male to AISG DIN Female
F  AISG/M-AISG/F-10.0M 10.0m   AISG DIN Male to AISG DIN Female
G  AISG/M-AISG/F-15.0M 15.0m   AISG DIN Male to AISG DIN Female
H  AISG/M-AISG/F-30.0M 30.0m   AISG DIN Male to AISG DIN Female
I
 AISG/M-AISG/F-50.0M 50.0m   AISG DIN Male to AISG DIN Female
J
 AISG/M-AISG/F-60.0M 60.0m   AISG DIN Male to AISG DIN Female
K
 AISG/M-AISG/F-70.0M 70.0m   AISG DIN Male to AISG DIN Female
L
 AISG/M-AISG/F-80.0M 80.0m   AISG DIN Male to AISG DIN Female
M  AISG/M-AISG/F-90.0M 90.0m   AISG DIN Male to AISG DIN Female
N
 AISG/M-AISG/F-100.0M 100.0m   AISG DIN Male to AISG DIN Female


Electrical Specifications:
Protocol AISG 1.1 | AISG 2.0
Voltage, maximum 300 V

Mechanical Specifications:
AISG Connector A 8-pin DIN Female
AISG Connector A Body Style Straight
AISG Connector A Standard IEC 60130-9
AISG Connector B 8-pin DIN Male
AISG Connector B Body Style Straight
AISG Connector B Standard IEC 60130-9
Data Conductor Type 0.20 mm² (24 AWG) twisted pair
Power Conductor Type 0.82 mm² (18 AWG) stranded
Total Conductors, quantity 6
Color Black

Environmental Specifications:
Climatic Sequence Test Method IEC 60068-2-14
Cold Exposure Test Method IEC 60068-2-1
Damp Heat Exposure Test Method IEC 60068-2-30, Test Condition Db
Heat Exposure Test Method IEC 60068-2-2
Operating Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Rain Simulation Test Method IEC 60068-2-18, Test Condition Ra, Method 1
Relative Humidity Up to 100%
UV Resistance Test Method IEC 60068-2-5, Test Condition B
Ingress Protection Test Method IEC 60529:2001, IP67

Dimensions:
Length 1.0 m~100m
*
Diameter Over Jacket 8.0 mm

  ** The cable length can custom-made with different size.
  *** The cable connection can custom-made with different style.

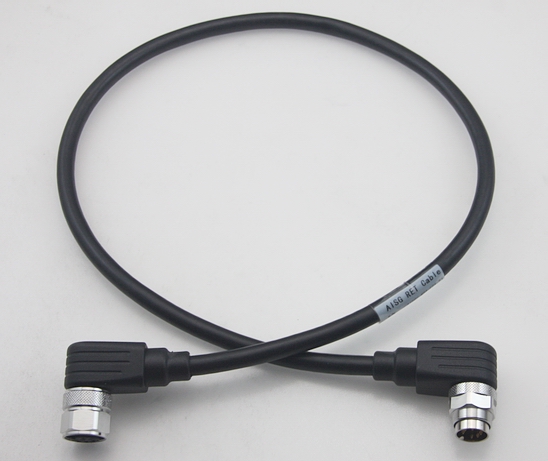

OVER MOLD AISG to AISG Cable

    Injection molding type AISG to AISG Cable:

The AISG control cables are used to feed data and power from the controller to the RET (remote electrical tilt) system components.

These cables are available in various lengths and are terminated with male and female connectors which allow them to be linked together to meet a required length.

GELVO recommends grounding the RET control cable at the top of the tower using a junction box. A lightning protection unit should be used at the bottom of the tower to ground the RET control cable.

     Structure Dimension:

No.
Model

Cable Length

Remark
A
  AISG/M-AISG/F(RA)-0.5M 0.5m   AISG DIN Male to AISG DIN Female
B
  AISG/M-AISG/F(RA)-1.0M 1.0m   AISG DIN Male to AISG DIN Female
C  AISG/M-AISG/F(RA)-3.0M 3.0m   AISG DIN Male to AISG DIN Female
D  AISG/M-AISG/F(RA)-5.0M 5.0m   AISG DIN Male to AISG DIN Female
E  AISG/M-AISG/F(RA)-6.0M 6.0m   AISG DIN Male to AISG DIN Female
F  AISG/M-AISG/F(RA)-10.0M 10.0m   AISG DIN Male to AISG DIN Female
G  AISG/M-AISG/F(RA)-15.0M 15.0m   AISG DIN Male to AISG DIN Female
H  AISG/M-AISG/F(RA)-30.0M 30.0m   AISG DIN Male to AISG DIN Female
I
 AISG/M-AISG/F(RA)-50.0M 50.0m   AISG DIN Male to AISG DIN Female
J
 AISG/M-AISG/F(RA)-60.0M 60.0m   AISG DIN Male to AISG DIN Female
K
 AISG/M-AISG/F(RA)-70.0M 70.0m   AISG DIN Male to AISG DIN Female
L
 AISG/M-AISG/F(RA)-80.0M 80.0m   AISG DIN Male to AISG DIN Female
M  AISG/M-AISG/F(RA)-90.0M 90.0m   AISG DIN Male to AISG DIN Female
N
 AISG/M-AISG/F(RA)-100.0M 100.0m   AISG DIN Male to AISG DIN Female


Electrical Specifications:
Protocol AISG 1.1 | AISG 2.0
Voltage, maximum 300 V

Mechanical Specifications:
AISG Connector A 8-pin DIN Female
AISG Connector A Body Style Straight
AISG Connector A Standard IEC 60130-9
AISG Connector B 8-pin DIN Male
AISG Connector B Body Style Straight
AISG Connector B Standard IEC 60130-9
Data Conductor Type 0.20 mm² (24 AWG) twisted pair
Power Conductor Type 0.82 mm² (18 AWG) stranded
Total Conductors, quantity 6
Color Black

Environmental Specifications:
Climatic Sequence Test Method IEC 60068-2-14
Cold Exposure Test Method IEC 60068-2-1
Damp Heat Exposure Test Method IEC 60068-2-30, Test Condition Db
Heat Exposure Test Method IEC 60068-2-2
Operating Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Rain Simulation Test Method IEC 60068-2-18, Test Condition Ra, Method 1
Relative Humidity Up to 100%
UV Resistance Test Method IEC 60068-2-5, Test Condition B
Ingress Protection Test Method IEC 60529:2001, IP67

Dimensions:
Length 1.0 m~100m
*
Diameter Over Jacket 8.0 mm

  ** The cable length can custom-made with different size.
  *** The cable connection can custom-made with different style.

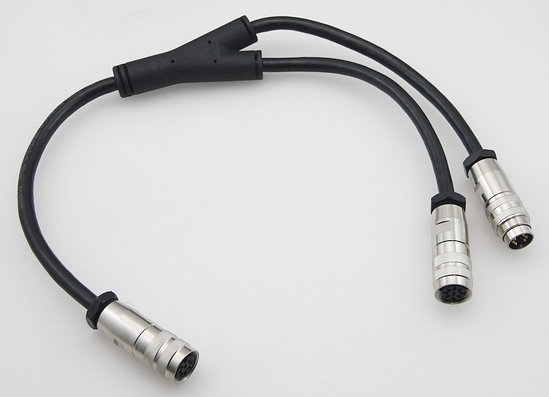

    2+1 type AISG to AISG Cable:

The AISG control cables are used to feed data and power from the controller to the RET (remote electrical tilt) system components.

These cables are available in various lengths and are terminated with male and female connectors which allow them to be linked together to meet a required length.

GELVO recommends grounding the RET control cable at the top of the tower using a junction box. A lightning protection unit should be used at the bottom of the tower to ground the RET control cable.

     Structure Dimension:

No.
Model

Cable Length

Remark
A
  AISG/M-AISG/FX2-0.5M 0.5m   AISG DIN Male to AISG DIN Female
B
  AISG/M-AISG/FX2-1.0M 1.0m   AISG DIN Male to AISG DIN Female
C  AISG/M-AISG/FX2-3.0M 3.0m   AISG DIN Male to AISG DIN Female
D  AISG/M-AISG/FX2-5.0M 5.0m   AISG DIN Male to AISG DIN Female
E  AISG/M-AISG/FX2-6.0M 6.0m   AISG DIN Male to AISG DIN Female
F  AISG/M-AISG/FX210.0M 10.0m   AISG DIN Male to AISG DIN Female
G  AISG/M-AISG/FX2-15.0M 15.0m   AISG DIN Male to AISG DIN Female
H  AISG/M-AISG/F-X230.0M 30.0m   AISG DIN Male to AISG DIN Female
I
 AISG/M-AISG/FX2-50.0M 50.0m   AISG DIN Male to AISG DIN Female
J
 AISG/M-AISG/FX2-60.0M 60.0m   AISG DIN Male to AISG DIN Female
K
 AISG/M-AISG/FX2-70.0M 70.0m   AISG DIN Male to AISG DIN Female
L
 AISG/M-AISG/FX2-80.0M 80.0m   AISG DIN Male to AISG DIN Female
M  AISG/M-AISG/FX2-90.0M 90.0m   AISG DIN Male to AISG DIN Female
N
 AISG/M-AISG/FX2-100.0M 100.0m   AISG DIN Male to AISG DIN Female


Electrical Specifications:
Protocol AISG 1.1 | AISG 2.0
Voltage, maximum 300 V

Mechanical Specifications:
AISG Connector A 8-pin DIN FemaleX2
AISG Connector A Body Style Straight
AISG Connector A Standard IEC 60130-9
AISG Connector B 8-pin DIN Male
AISG Connector B Body Style Straight
AISG Connector B Standard IEC 60130-9
Data Conductor Type 0.20 mm² (24 AWG) twisted pair
Power Conductor Type 0.82 mm² (18 AWG) stranded
Total Conductors, quantity 6
Color Black

Environmental Specifications:
Climatic Sequence Test Method IEC 60068-2-14
Cold Exposure Test Method IEC 60068-2-1
Damp Heat Exposure Test Method IEC 60068-2-30, Test Condition Db
Heat Exposure Test Method IEC 60068-2-2
Operating Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Rain Simulation Test Method IEC 60068-2-18, Test Condition Ra, Method 1
Relative Humidity Up to 100%
UV Resistance Test Method IEC 60068-2-5, Test Condition B
Ingress Protection Test Method IEC 60529:2001, IP67

Dimensions:
Length 1.0 m~100m
*
Diameter Over Jacket 8.0 mm

  ** The cable length can custom-made with different size.
  *** The cable connection can custom-made with different style.

    Bird Pecking Prevention AISG to AISG Cable:

The brid pecking prevention AISG control cables are used to feed data and power from the controller to the RET (remote electrical tilt) system components,it can prevention the cable for the bird pecking damage.

These cables are available in various lengths and are terminated with male and female connectors which allow them to be linked together to meet a required length.

GELVO recommends grounding the RET control cable at the top of the tower using a junction box. A lightning protection unit should be used at the bottom of the tower to ground the RET control cable.

     Structure Dimension:

No.
Model

Cable Length

Remark
A
  AISG/M-AISG/F-0.5M(BP) 0.5m   AISG DIN Male to AISG DIN Female
B
  AISG/M-AISG/F-1.0M(BP) 1.0m   AISG DIN Male to AISG DIN Female
C  AISG/M-AISG/F-3.0M(BP) 3.0m   AISG DIN Male to AISG DIN Female
D  AISG/M-AISG/F-5.0M(BP) 5.0m   AISG DIN Male to AISG DIN Female
E  AISG/M-AISG/F-6.0M(BP) 6.0m   AISG DIN Male to AISG DIN Female
F  AISG/M-AISG/F-10.0M(BP) 10.0m   AISG DIN Male to AISG DIN Female
G  AISG/M-AISG/F-15.0M(BP) 15.0m   AISG DIN Male to AISG DIN Female
H  AISG/M-AISG/F-30.0M(BP) 30.0m   AISG DIN Male to AISG DIN Female
I
 AISG/M-AISG/F-50.0M(BP) 50.0m   AISG DIN Male to AISG DIN Female
J
 AISG/M-AISG/F-60.0M(BP) 60.0m   AISG DIN Male to AISG DIN Female
K
 AISG/M-AISG/F-70.0M(BP) 70.0m   AISG DIN Male to AISG DIN Female
L
 AISG/M-AISG/F-80.0M(BP) 80.0m   AISG DIN Male to AISG DIN Female
M  AISG/M-AISG/F-90.0M(BP) 90.0m   AISG DIN Male to AISG DIN Female
N
 AISG/M-AISG/F-100.0M(BP) 100.0m   AISG DIN Male to AISG DIN Female


Electrical Specifications:
Protocol AISG 1.1 | AISG 2.0
Voltage, maximum 300 V

Mechanical Specifications:
AISG Connector A 8-pin DIN Female
AISG Connector A Body Style Straight
AISG Connector A Standard IEC 60130-9
AISG Connector B 8-pin DIN Male
AISG Connector B Body Style Straight
AISG Connector B Standard IEC 60130-9
Data Conductor Type 0.20 mm² (24 AWG) twisted pair
Power Conductor Type 0.82 mm² (18 AWG) stranded
Total Conductors, quantity 6
Color Black

Environmental Specifications:
Climatic Sequence Test Method IEC 60068-2-14
Cold Exposure Test Method IEC 60068-2-1
Damp Heat Exposure Test Method IEC 60068-2-30, Test Condition Db
Heat Exposure Test Method IEC 60068-2-2
Operating Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Rain Simulation Test Method IEC 60068-2-18, Test Condition Ra, Method 1
Relative Humidity Up to 100%
UV Resistance Test Method IEC 60068-2-5, Test Condition B
Ingress Protection Test Method IEC 60529:2001, IP67

Dimensions:
Length 1.0 m~100m
*
Diameter Over Jacket 8.0 mm

  ** The cable length can custom-made with different size.
  *** The cable connection can custom-made with different style.

Bird Pecking Prevention AISG to AISG Cable


      AISG Dust Cap:


 Item Name:  AISG Male Dust Cap
 Model:  MASB-CAP/M
 Material:  Brass with nickel plating
 Applicable:  AISG Male Connector
 Sealing:  Silicone Rubber
 Thread Size:  M16X0.75

 Item Name:  AISG Female Dust Cap
 Model:  MASB-CAP/F
 Material:  Brass with nickel plating
 Applicable:  AISG Male Connector
 Sealing:  None
 Thread Size:  M16X0.75
