  PRODUCT >> FEEDER CLAMP & HANGER

Grounding Kits Clamp & Hangers Grounding Bar Cable Entry Hoisting Grip
Cable Tools  Weatherproofing Kit Antenna Bracket Cable Ladder Moving Room

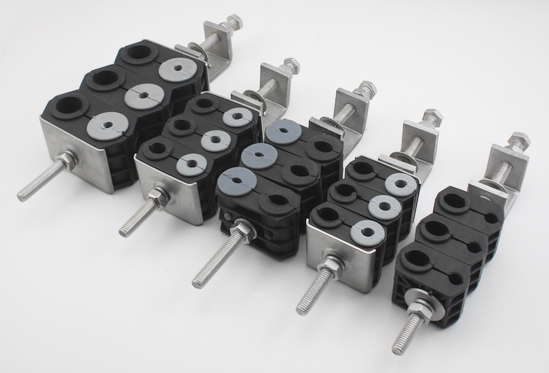

 Item Name:  Feeder Cable Hanger (Feeder Clamp)
 Clamp Class:  Click-On Hanger (Through Type)
 Clamp Model:  TR-X*XX-304SS (TR-2X1/2"-304SS)
 Plastic Material:  Polypropylene (PP)
 Metal Material:  304 Stainless Steel
 Clamp Stack:  Single,Double,Triple,Fourfold Stack
 Match Cable:  3/8",1/2",7/8",1-1/4",1-5/8" Feeder *
 Match Cable:  RG8,RG213,LMR400 Coaxial Cable

 Item Name:  Feeder Cable Hanger (Feeder Clamp)
 Clamp Class:  Click-On Hanger (Through Type)
 Clamp Model:  TRF-X*XX-304SS (TR-2X7/8"-304SS)
 Plastic Material:  Polypropylene(PP) + Fiberglass
 Metal Material:  304 Stainless Steel
 Clamp Stack:  Single,Double,Triple,Fourfold Stack
 Match Cable:  3/8",1/2",7/8",1-1/4",1-5/8" Feeder *
 Match Cable:  RG8,RG213,LMR400 Coaxial Cable

 Item Name:  Optical Fiber Hanger (Feeder Clamp)
 Clamp Class:  Click-On type Hanger
 Clamp Model:  TRO-X*XX-304SS
 Plastic Material:  Polypropylene (PP) / ABS
 Metal Material:  304 Stainless Steel
 Clamp Stack:  Single,Double,Triple,Fourfold Stack
 Match Cable:  5.5-14.0mm Optical Fiber

 Item Name:  Feeder Cable Hanger (Feeder Clamp)

 Clamp Class:  Two Hole Type (S-Steel Splint Include)
 Clamp Model:  TWS-X*XX-304SS (TWS-6X7/8"-304SS)
 Plastic Material:  ABS (Styreneckpolymer) / PP
 Metal Material:  304 Stainless Steel
 Clamp Stack:  Single,Double,Triple Stack
 Match Cable:  7/8" Feeder Cable

 Item Name:  Feeder Cable Hanger (Feeder Clamp)

 Clamp Class:  Two Hole Type (Without S-Steel Splint)
 Clamp Model:  TWZ-X*XX-304SS (TWZ-6X1/2"-304SS)
 Plastic Material:  Polypropylene (PP)
 Metal Material:  304 Stainless Steel
 Clamp Stack:  Single,Double,Triple Stack
 Match Cable:  1/2",1/2"SF,7/8" Feeder Cable

 Item Name:  Optical Fiber & Power Cable Hanger

 Clamp Class:  Two Hole Type (S-Steel Splint Include)
 Clamp Model:  TWOS-X*XX-XX-304SS
 Plastic Material:  Polypropylene (PP)
 Metal Material:  304 Stainless Steel
 Clamp Stack:  Single,Double,Triple Stack
 Match Cable:  5~8mm Fiber & 9~13mm Cable

 Item Name:  Optical Fiber & Power Cable Hanger
 Clamp Class:  Two Hole Type (Without S-Steel Splint)
 Clamp Model:  TWOB-X*XX-XX-304SS
 Plastic Material:  Polypropylene (PP)
 Metal Material:  304 Stainless Steel
 Clamp Stack:  Single,Double,Triple Stack
 Match Cable:  5~8mm Fiber & 8~18.5mm Cable

 Item Name:  Feeder Cable Hanger (Feeder Clamp)
 Clamp Class:  Two Hole Type
 Clamp Model:  TWMS-X*XX-304SS
 Plastic Material:  Polypropylene(PP) + Fiberglass
 Metal Material:  304 Stainless Steel **
 Clamp Stack:  Single,Double,Triple Stack ***
 Match Cable:  1/2",1/2"SF,7/8",1-1/4",1-5/8" Feeder

 Item Name:  Feeder Cable Hanger (Feeder Clamp)
 Clamp Class:  Two Hole Type
 Clamp Model:  TWME-X*XX-304SS
 Plastic Material:  Polypropylene(PP) + Fiberglass
 Metal Material:  304 Stainless Steel **
 Clamp Stack:  Single,Double,Triple Stack ***
 Match Cable:  1/2",7/8",1-1/4",1-5/8" Feeder

 Item Name:  Feeder Cable Hanger (Feeder Clamp)
 Clamp Class:  Two Hole Type
 Clamp Model:  TWME-X*XX-304SS
 Plastic Material:  Polypropylene(PP) + Fiberglass
 Metal Material:  304 Stainless Steel **
 Clamp Stack:  Single,Double,Triple Stack
 Match Cable:  1/4"SF,3/8",1/2"SF Feeder

 Item Name:  Feeder Cable Hanger (Feeder Clamp)

 Clamp Class:  Suspend Hamulus Type
 Clamp Model:  SHZ-X*XX-304SS (SHZ-3X7/8"-304SS)
 Plastic Material:  Polypropylene (PP)
 Metal Material:  304 Stainless Steel
 Clamp Stack:  Single,Double,Triple Stack
 Match Cable:  7/8" Feeder Cable

 Item Name:  Leaky Cable Hanger (Feeder Clamp)
 Clamp Class:  Self-Locking Hanger
 Clamp Model:  LKC-XX-PPI (LKC-1-1/4"-PPI)
 Plastic Material:  Polypropylene (PP)
 Metal Material:  Iron or 304 Stainless Steel
 Clamp Stack:  Single Stack
 Match Cable:  7/8",1-1/4",1-5/8" Leaky Cable

 Item Name:  Leaky Cable Hanger (Feeder Clamp)
 Clamp Class:  Self-Locking Hanger
 Clamp Model:  LKC-XX-PPU (LKC-1-1/4"-PPU)
 Plastic Material:  Polypropylene (PP)
 Metal Material:  Iron or 304 Stainless Steel
 Clamp Stack:  Single Stack
 Match Cable:  7/8",1-1/4",1-5/8" Leaky Cable

 Item Name:  Leaky Cable Hanger (Feeder Clamp)
 Clamp Class:  Self-Locking Hanger
 Clamp Model:  LKR-XX-PPI (LKR-1-1/4"-PPI)
 Plastic Material:  Polypropylene (PP)
 Metal Material:  Iron or 304 Stainless Steel
 Clamp Stack:  Single Stack
 Match Cable:  7/8",1-1/4",1-5/8" Leaky Cable

 Item Name:  Leaky Cable Hanger (Feeder Clamp)
 Clamp Class:  Self-Locking Hanger
 Clamp Model:  LKR-XX-PPU (LKR-1-1/4"-PPU)
 Plastic Material:  Polypropylene (PP)
 Metal Material:  Iron or 304 Stainless Steel
 Clamp Stack:  Single Stack
 Match Cable:  7/8",1-1/4",1-5/8" Leaky Cable

 Item Name:  Feeder Cable Hanger (Feeder Clamp)

 Clamp Class:  Hoop Type
 Clamp Model:  HP-XX-304SS (HP-7/8"-304SS)
 Clamp Material:  Black Rubber
 Metal Material:  304 Stainless Steel
 Clamp Stack:  Single Stack
 Match Cable:  1/2",7/8",1-1/4",1-5/8",3-1/8" Feeder

 Item Name:  Elliptical Wave-Guide Clamp
 Clamp Class:  Hoop Type (For Wave-Guide)
 Clamp Model:  HPW-XX-304SS (HPW-BT62-304SS)
 Clamp Material:  Black Rubber
 Metal Material:  304 Stainless Steel
 Clamp Stack:  Single,Double,Triple,Fourfold Stack
 Match Cable:  BT-26,54,90 BTX-62,80 Wave-Guide

 Item Name:  Through Clamp Hanger Kit
 Clamp Class:  Click-On Hanger (Through Type)
 Clamp Model:  TCH-XX-304SS (TCH-4X7/8"-304SS)
 Metal Material:  304 Stainless Steel
 Clamp Stack:  1,2,3,4,5,6,7,8... Stack
 Match Cable:  3/8",1/2",7/8",1-1/4",1-5/8" Feeder

 Item Name:  U Angle Adapter
 Model:  AD-UC-304SS
 Material Thickness:  3.9mm
 Maximum Loading:  Triple stack, 1-5/8 in cable
 Mounting:  M6/M8 in tapped hole
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag

 Item Name:  Mini U Angle Adapter
 Model:  AD-MN-304SS
 Material Thickness:  2.97mm
 Maximum Loading:  Triple stack, 1-5/8 in cable
 Mounting:  M6/M8 in tapped hole
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag

 Item Name:  Medium U Angle Adapter
 Model:  AD-MD-304SS
 Material Thickness:  2.97mm
 Maximum Loading:  Triple stack, 1-5/8 in cable
 Mounting:  M6/M8 in tapped hole
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag

 Item Name:  Compact Angle Adapter
 Model:  AD-HC-304SS
 Material Thickness:  2.97mm
 Maximum Loading:  Double stack, 1-5/8 in cable
 Mounting:  3/8 in tapped hole (M10)
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag

 Item Name:  Angle Adapter, standard, 3/8 in tapped
 Model:  AD-TH-304SS
 Material Thickness:  4.19mm
 Maximum Loading:  Triple stack, 1-5/8 in cable
 Mounting:  3/8 in tapped hole/M10 tapped hole
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag

 Item Name:  Universal Angle Adapter (Snap-in)
 Model:  AD-US-304SS
 Material Thickness:  2.67mm
 Maximum Loading:  Triple stack, 1-5/8 in cable
 Mounting:  3/4 in through hole
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag

 Item Name:  Stand-off Adapter, 3/8 in tapped hole
 Clamp Class:  3/8" Tapped Adapter
 Clamp Model:  AD-TP-304SS
 Metal Material:  304 Stainless Steel
 Mounting:  3/8 in tapped hole
 Packing:  Plastic Bag,10Pcs/bag

 Item Name:  3/4" Tapped Stand-Off Adapter
 Clamp Class:  3/4" Tapped Adapter
 Clamp Model:  AD-SN-304SS
 Metal Material:  304 Stainless Steel
 Mounting:  3/8 in tapped hole
 Packing:  Plastic Bag,10Pcs/bag

 Item Name:  Universal Stand-off Adapter
 Clamp Class:  Three-way Snap-in Stand-off Adapter
 Clamp Model:  AD-USXX-304SS (AD-USX5"-304SS)
 Metal Material:  304 Stainless Steel
 Hoop Diameter:  1"-10" Diameter
 Packing:  Plastic Bag,10Pcs/bag

 Item Name:  Round Hoop Member Adaptor
 Clamp Class:  Round Hoop Type
 Clamp Model:  AD-RH-304SS
 Metal Material:  304,202,201 Stainless steel
 Hoop Diameter:  1"-15" Diameter

 Item Name:  Standard Butterfly Hanger
 Model:  HGBT-XX-304SS (HGBT-1/2"-304SS)
 Match Cable:  1/2",1/2"SF,LMR600 Feeder Cable
 Cables Per Hanger:  1 pcs
 Mounting:  3/8 in (M10) drilled cable ladder
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag

 Item Name:  Stainless Steel Ties
 Thickness:  0.25mm
 Width:  4.6~12mm
 Length:  100~400mm
 Surface:  Natural Colour
 Enlace Size  Φ23mm - Φ116.0mm
 Packing:  100pcs/Bag

 Item Name:  Standard Butterfly Hanger
 Model:  HGBT-7/8"-304SS
 Match Cable:  7/8" Feeder Cable
 Cables Per Hanger:  1 pcs
 Mounting:  3/8 in (M10) drilled cable ladder
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag

 Item Name:  Standard Butterfly Hanger
 Model:  HGBT-1-1/4"-304SS
 Match Cable:  1-1/4" Feeder Cable
 Cables Per Hanger:  1 pcs
 Mounting:  3/8 in (M10) drilled cable ladder
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag

 Item Name:  Standard Butterfly Hanger
 Model:  HGBT-1-5/8"-304SS
 Match Cable:  1-5/8" Feeder Cable
 Cables Per Hanger:  1 pcs
 Mounting:  3/8 in (M10) drilled cable ladder
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag

 Item Name:  Standard Butterfly Hanger
 Model:  HGBT-2-1/4"-304SS
 Match Cable:  2-1/4" Feeder Cable
 Cables Per Hanger:  1 pcs
 Mounting:  3/8 in (M10) drilled cable ladder
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag

 Item Name:  Hardware Kit For Click-on Hanger
 Model:  HW-X.X-304SS
 Length :  9.5,13.7,17.8,18.4,24.7 cm
 Includes:  Washers,Threaded rods,Hex nuts
 Thread Size    3/8 in (M10)
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag

 Item Name:  Hardware of Insert
 Model:  HW-INT-3/8"
 Thread Size    3/8 in (M10)
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag

 Item Name:  3/8" Bracket
 Model:  HW-BK-3/8"
 Thread Size    3/8 in (M10)
 Metal Material:  304 Stainless steel
 Packing:  Plastic Bag,10Pcs/bag

  * For 1/2" & 7/8" clamp,the thread Rod is ØM8,For 1-1/4" & 1-5/8" clamp,the thread Rod is ØM10.

 ** The thread hole can custom-made with ØM8 or ØM10.
   *** The thread rod can custom-made with ØM8 or ØM10.

FEEDER CLAMP & HANGER
