  PRODUCT >> INDOOR ANTENNAE

Indoor Ceiling Antennas

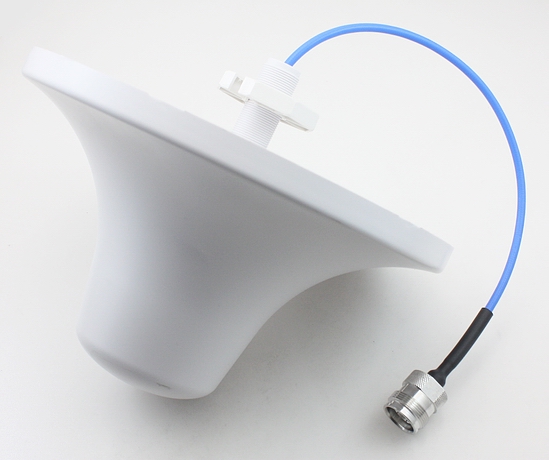

Name: Omni Ceiling Antenna Power: 50W
Model: CE-727-5DBN/AJ Polarization: Vertical
Class: Omni (Ceiling) Impedance: 50 Ω
Freq: 698-960;1710-2700MHz Connector: N/Female
Gain 2.0/4.5±0.5dB Size: 203X105mm
VSWR: < 1.8 ; <1.5 Radome: ABS,White
PIM: <-153dBc@2X20W Weight: 0.40kg
Name: Omni Ceiling Antenna Power: 50W
Model: CE-727-5DB43D/AJ Polarization: Vertical
Class: Omni (Ceiling) Impedance: 50 Ω
Freq: 698-960;1710-2700MHz Connector: 4.3-10/Female
Gain 2.0/4.5±0.5dB Size: 203X105mm
VSWR: < 1.8 ; <1.5 Radome: ABS,White
PIM: <-153dBc@2X20W Weight: 0.40kg
Name: Omni Ceiling Antenna Power: 50W
Model: CE-740-5DBN/AJ Polarization: Vertical
Class: Omni (Ceiling) Impedance: 50 Ω
Freq: 698-4200MHz Connector: N/Female
Gain 2.0/4.5±1.0dB Size: 203X115mm
VSWR: < 1.5 ; <1.8 Radome: ABS,White
PIM: <-153dBc@2X20W Weight: 0.40kg
Name: Omni Ceiling Antenna Power: 50W
Model: CE-740-5DB43D/AJ Polarization: Vertical
Class: Omni (Ceiling) Impedance: 50 Ω
Freq: 698-4200MHz Connector: 4.3-10/Female
Gain 2.0/4.5±1.0dB Size: 203X115mm
VSWR: < 1.5 ; <1.8 Radome: ABS,White
PIM: <-153dBc@2X20W Weight: 0.40kg
Name: Omni Ceiling Antenna Power: 50W
Model: CE-760-5DBN/AJ Polarization: Vertical
Class: Omni (Ceiling) Impedance: 50 Ω
Freq: 694-6000MHz Connector: N/Female
Gain 2.0/4.5±0.5dB Size: 203X115mm
VSWR: < 1.5 ; <1.8 ; <2.0 Radome: ABS,White
PIM: <-153dBc@2X20W Weight: 0.55kg
Name: Omni Ceiling Antenna Power: 50W
Model: CE-760-5DB43D/AJ Polarization: Vertical
Class: Omni (Ceiling) Impedance: 50 Ω
Freq: 694-6000MHz Connector: 4.3-10/Female
Gain 2.0/4.5±0.5dB Size: 203X115mm
VSWR: < 1.5 ; <1.8 ; <2.0 Radome: ABS,White
PIM: <-153dBc@2X20W Weight: 0.55kg
Name: Omni Ceiling Antenna Power: 50W
Model: CE-360-5DBN/AJ Polarization: Vertical
Class: Omni (Ceiling) Impedance: 50 Ω
Freq: 380-6000MHz Connector: N/Female
Gain 2.0/4.0±1.0dB Size: 298X152mm
VSWR: < 2.5 ; <2.0 Radome: ABS,White
PIM: <-153dBc@2X20W Weight: 0.90kg
Name: Omni Ceiling Antenna Power: 50W
Model: CE-360-5DB43D/AJ Polarization: Vertical
Class: Omni (Ceiling) Impedance: 50 Ω
Freq: 380-6000MHz Connector: 43-10/Female
Gain 2.0/4.0±1.0dB Size: 298X152mm
VSWR: < 2.5 ; <2.0 Radome: ABS,White
PIM: <-153dBc@2X20W Weight: 0.90kg
Name: Omni Ceiling Antenna Power: 50W
Model: CE-727-5DBN/H Polarization: Vertical
Class: Omni (Ceiling) Impedance: 50 Ω
Freq: 698-2700MHz Connector: N/Female
Gain 2.0/5.0±1.0dB Size: 187X78mm
VSWR: < 1.8 ; <1.5 Radome: ABS,White
PIM: <-140dBc@2X20W Weight: 0.30kg
Name: Omni Ceiling Antenna Power: 50W
Model: CE-727-5DBN//E Polarization: Vertical
Class: Omni (Ceiling) Impedance: 50 Ω
Freq: 698-2700MHz Connector: N/Female
Gain 2.0/5.0±1.0dB Size: 187X78mm
VSWR: < 1.8 ; <1.5 Radome: ABS,White
PIM: <-140dBc@2X2W Weight: 0.30kg
Name: Omni Ceiling Antenna Power: 50W
Model: CE-827-5DBN//E Polarization: Vertical
Class: Omni (Ceiling) Impedance: 50 Ω
Freq: 800-2700MHz Connector: N/Female
Gain 2.0/5.0±1.0dB Size: 187X78mm
VSWR: < 1.8 ; <1.5 Radome: ABS,White
PIM: <-140dBc@2X2W Weight: 0.30kg
Name: Omni Ceiling Antenna Power: 50W
Model: CE-727-5DBN/FRJ Polarization: Vertical
Class: Omni (Ceiling) Impedance: 50 Ω
Freq: 698-2700MHz Connector: N/Female
Gain 3.0/4.5±1dB Size: 220X18mm
VSWR: < 1.8 Radome: ABS,White
PIM: <-153dBc@2X20W Weight: 0.32kg
Name: Omni Ceiling Antenna Power: 50W
Model: CE-727-5DB43D/FRJ Polarization: Vertical
Class: Omni (Ceiling) Impedance: 50 Ω
Freq: 698-2700MHz Connector: 4.3-10/Female
Gain 3.0/4.5±1dB Size: 220X18mm
VSWR: < 1.8 Radome: ABS,White
PIM: <-153dBc@2X20W Weight: 0.32kg
Name: Omni Ceiling Antenna Power: 50W
Model: CE-640-6DBN/FRJ Polarization: Vertical
Class: Omni (Ceiling) Impedance: 50 Ω
Freq: 617-4000MHz Connector: N/Female
Gain 2.2/6.0±1dB Size: 220X18mm
VSWR: < 1.5 Radome: ABS,White
PIM: <-153dBc@2X20W Weight: 0.32kg
Name: Omni Ceiling Antenna Power: 50W
Model: CE-640-6DB43D/FRJ Polarization: Vertical
Class: Omni (Ceiling) Impedance: 50 Ω
Freq: 617-4000MHz Connector: 4.3-10/Female
Gain 2.2/6.0±1dB Size: 220X18mm
VSWR: < 1.5 Radome: ABS,White
PIM: <-153dBc@2X20W Weight: 0.32kg
Name: Omni Ceiling Antenna Power: 50W
Model: CE-660-6DBN/FRJ Polarization: Vertical
Class: Omni (Ceiling) Impedance: 50 Ω
Freq: 617-6000MHz Connector: N/Female
Gain 1.5/6.0±1dB Size: 220X18mm
VSWR: < 1.8 Radome: ABS,White
PIM: <-153dBc@2X20W Weight: 0.32kg
Name: Omni Ceiling Antenna Power: 50W
Model: CE-660-6DB43D/FRJ Polarization: Vertical
Class: Omni (Ceiling) Impedance: 50 Ω
Freq: 617-6000MHz Connector: 4.3-10/Female
Gain 1.5/6.0±1dB Size: 220X18mm
VSWR: < 1.8 Radome: ABS,White
PIM: <-153dBc@2X20W Weight: 0.32kg
Name: Omni Ceiling Antenna Power: 50W
Model: CE-360-5DBN/FRJ Polarization: Vertical
Class: Omni (Ceiling) Impedance: 50 Ω
Freq: 617-6000MHz Connector: N/Female
Gain 3.0/5.0±1dB Size: 290X10mm
VSWR: < 2.0 ; < 1.8 Radome: ABS,White
PIM: <-153dBc@2X20W Weight: 0.50kg
Name: Omni Ceiling Antenna Power: 50W
Model: CE-360-5DB43D/FRJ Polarization: Vertical
Class: Omni (Ceiling) Impedance: 50 Ω
Freq: 617-6000MHz Connector: 4.3-10/Female
Gain 3.0/5.0±1dB Size: 290X10mm
VSWR: < 2.0 ; < 1.8 Radome: ABS,White
PIM: <-153dBc@2X20W Weight: 0.50kg
Name: Omni Ceiling Antenna Power: 50W
Model: CE-727-6DBN/FAT Polarization: Vertical
Class: Omni (Ceiling) Impedance: 50 Ω
Freq: 698-2700MHz Connector: N/Female
Gain 2.5/6.5±0.5dB Size: 218X40mm
VSWR: < 2.0 Radome: ABS,White
PIM: <-150dBc@2X20W Weight: 0.40kg
Name: Omni Ceiling Antenna Power: 50W
Model: CE-727-6DB43D/FAT Polarization: Vertical
Class: Omni (Ceiling) Impedance: 50 Ω
Freq: 698-2700MHz Connector: 4.3-10/Female
Gain 2.5/6.5±0.5dB Size: 218X40mm
VSWR: < 2.0 Radome: ABS,White
PIM: <-150dBc@2X20W Weight: 0.40kg
Name: Omni Ceiling Antenna Power: 50W
Model: CE-327-6DBN/FAT Polarization: Vertical
Class: Omni (Ceiling) Impedance: 50 Ω
Freq: 380-2700MHz Connector: N/Female
Gain 2.5/6.5±0.5dB Size: 218X40mm
VSWR: < 2.0 Radome: ABS,White
PIM: <-150dBc@2X20W Weight: 0.40kg
Name: Omni Ceiling Antenna Power: 50W
Model: CE-327-6DB43D/FAT Polarization: Vertical
Class: Omni (Ceiling) Impedance: 50 Ω
Freq: 380-2700MHz Connector: 4.3-10//Female
Gain 2.5/6.5±0.5dB Size: 218X40mm
VSWR: < 2.0 Radome: ABS,White
PIM: <-150dBc@2X20W Weight: 0.40kg
Name: Omni Ceiling Antenna Power: 50W
Model: CE-740-5DBN/FAT Polarization: Vertical
Class: Omni (Ceiling) Impedance: 50 Ω
Freq: 698-4000MHz Connector: N/Female
Gain 2.5/5.0±1.0dB Size: 218X40mm
VSWR: < 2.0 Radome: ABS,White
PIM: <-150dBc@2X20W Weight: 0.40kg
Name: Omni Ceiling Antenna Power: 50W
Model: CE-740-5DB43D/FAT Polarization: Vertical
Class: Omni (Ceiling) Impedance: 50 Ω
Freq: 698-4000MHz Connector: 4.3-10/Female
Gain 2.5/5.0±1.0dB Size: 218X40mm
VSWR: < 2.0 Radome: ABS,White
PIM: <-150dBc@2X20W Weight: 0.40kg
Name: Omni Ceiling Antenna Power: 50W
Model: CE-825-3DBN/T Polarization: Vertical
Class: Omni (Ceiling) Impedance: 50 Ω
Freq: 800-2500MHz Connector: N/Female
Gain 2.0/3.0±1.0dB Size: 187X80mm
VSWR: < 1.5 Radome: Transparent
PIM: --- Weight: 0.45kg
Name: Omni Ceiling Antenna Power: 50W
Model: CE-725-3DBN//S Polarization: Vertical
Class: Omni (Ceiling) Impedance: 50 Ω
Freq: 698-2700MHz Connector: N/Female
Gain 2.0/3.0±1.0dB Size: 186X85mm
VSWR: < 1.5 Radome: Transparent
PIM: --- Weight: 0.50kg
Name: MIMO Omni Ceiling Antenna Power: 50W
Model: MOCE-727-5DBN/FAJ Polarization: Vertical
Class: MIMO Omni (Ceiling) Impedance: 50 Ω
Freq: 698-2700MHz Connector: N/Female
Gain 3.5/5.0±1dB Size: 218X40mm
VSWR: < 2.0 Radome: ABS,White
PIM: <-150dBc@2X20W Weight: 0.50kg
Name: MIMO Omni Ceiling Antenna Power: 50W
Model: MOCE-727-5DB43D/FAJ Polarization: Vertical
Class: MIMO Omni (Ceiling) Impedance: 50 Ω
Freq: 698-2700MHz Connector: 4.3-10/Female
Gain 3.5/5.0±1dB Size: 218X40mm
VSWR: < 2.0 Radome: ABS,White
PIM: <-150dBc@2X20W Weight: 0.50kg
Name: MIMO Omni Ceiling Antenna Power: 50W
Model: MOCE-740-5DBN/FAJ Polarization: Vertical
Class: MIMO Omni (Ceiling) Impedance: 50 Ω
Freq: 698-4000MHz Connector: N/Female
Gain 3.5/5.0±1dB Size: 218X40mm
VSWR: < 2.0 Radome: ABS,White
PIM: <-150dBc@2X20W Weight: 0.50kg
Name: MIMO Omni Ceiling Antenna Power: 50W
Model: MOCE-740-5DB43D/FAJ Polarization: Vertical
Class: MIMO Omni (Ceiling) Impedance: 50 Ω
Freq: 698-4000MHz Connector: 4.3-10/Female
Gain 3.5/5.0±1dB Size: 218X40mm
VSWR: < 2.0 Radome: ABS,White
PIM: <-150dBc@2X20W Weight: 0.50kg
Name: MIMO Omni Ceiling Antenna Power: 50W
Model: MOCE-740-5DBN/FRJ Polarization: Vertical
Class: MIMO Omni (Ceiling) Impedance: 50 Ω
Freq: 698-4000MHz Connector: N/Female
Gain 1.5/6.0±1dB Size: 266X18mm
VSWR: < 1.8 Radome: ABS,White
PIM: <-153dBc@2X20W Weight: 0.50kg
Name: MIMO Omni Ceiling Antenna Power: 50W
Model: MOCE-740-5DB43D/FRJ Polarization: Vertical
Class: MIMO Omni (Ceiling) Impedance: 50 Ω
Freq: 698-4000MHz Connector: 43-10/Female
Gain 1.5/6.0±1dB Size: 266X18mm
VSWR: < 1.8 Radome: ABS,White
PIM: <-153dBc@2X20W Weight: 0.50kg
Name: MIMO Omni Ceiling Antenna Power: 50W
Model: MOCE-740-3DBN/SFT Polarization: Vertical
Class: MIMO Omni (Ceiling) Impedance: 50 Ω
Freq: 698-2700MHz Connector: N/Female
Gain 2.0/3.5±1dB Size: 204X119mm
VSWR: < 1.5 Radome: ABS,White
PIM: <-140dBc@2X20W Weight: 0.550kg
Name: MIMO Omni Ceiling Antenna Power: 50W
Model: MOCE-740-3DB43D/SFT Polarization: Vertical
Class: MIMO Omni (Ceiling) Impedance: 50 Ω
Freq: 698-2700MHz Connector: 4.3-10/Female
Gain 2.0/3.5±1dB Size: 204X119mm
VSWR: < 1.5 Radome: ABS,White
PIM: <-140dBc@2X20W Weight: 0.550kg
Name: MIMO Omni Ceiling Antenna Power: 50W
Model: MOCE-827-3DBN/SJD Polarization: Vertical
Class: MIMO Omni (Ceiling) Impedance: 50 Ω
Freq: 800-2700MHz Connector: N/Female
Gain 2.0/3.5±1dB Size: 204X119mm
VSWR: < 1.5 Radome: ABS,White
PIM: <-140dBc@2X20W Weight: 0.550kg
Name: MIMO Omni Ceiling Antenna Power: 50W
Model: MOCE-827-3DB43D/SJD Polarization: Vertical
Class: MIMO Omni (Ceiling) Impedance: 50 Ω
Freq: 800-2700MHz Connector: 43-10/Female
Gain 2.0/3.5±1dB Size: 204X119mm
VSWR: < 1.5 Radome: ABS,White
PIM: <-140dBc@2X20W Weight: 0.550kg
Name: 4X4 MIMO Omni Antenna Power: 50W
Model: MOCE4X4-740-5DBN/FAJ Polarization: Vertical
Class: 4X4 MIMO Omni Impedance: 50 Ω
Freq: 698-4000MHz Connector: N/Female
Gain 3.0/4.5±1dB Size: 360X24mm
VSWR: < 1.8 Radome: ABS,White
PIM: <-153dBc@2X20W Weight: 0.90kg
Name: 4X4 MIMO Omni Antenna Power: 50W
Model: MOCE4X4-740-5DB43D/FAJ Polarization: Linear×4
Class: 4X4 MIMO Omni Impedance: 50 Ω
Freq: 698-4000MHz Connector: 4.3-10/Female
Gain 3.0/4.5±1dB Size: 360X24mm
VSWR: < 1.8 Radome: ABS,White
PIM: <-153dBc@2X20W Weight: 0.90kg

Indoor Directional Ceiling Antennas

 Item Name:  Directional Ceiling Antenna  Beamwidth H:  120°
 Model:  DCE-727-7DBN/H  Beamwidth V:  70°
 Class:  Directional Ceiling  Polarization:  Vertical
 Frequency:  698-960,1700-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  186X80mm
 Gain:  5/7dB  Weight:  0.70kg
 VSWR:  < 1.5(2) (PIM< -140dBc) *  Remark:  Aluminum Plate
 Item Name:  Directional Ceiling Antenna  Beamwidth H:  120°
 Model:  DCE-727-7DBN  Beamwidth V:  70°
 Class:  Directional Ceiling  Polarization:  Vertical
 Frequency:  698-960,1700-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  186X80mm
 Gain:  5/7dB  Weight:  0.70kg
 VSWR:  < 1.5  Remark:  Aluminum Plate
 Item Name:  Directional Ceiling Antenna  Beamwidth H:  120°
 Model:  DCE-827-7DBN  Beamwidth V:  70°
 Class:  Directional Ceiling  Polarization:  Vertical
 Frequency:  806-960,1700-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  186X80mm
 Gain:  5/7dB  Weight:  0.70kg
 VSWR:  < 1.5  Remark:  Aluminum Plate
 Item Name:  Directional Ceiling Antenna  Beamwidth H:  120°
 Model:  DCE-825-7DBN  Beamwidth V:  70°
 Class:  Directional Ceiling  Polarization:  Vertical
 Frequency:  806-960,1700-2500MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  186X80mm
 Gain:  5/7dB  Weight:  0.70kg
 VSWR:  < 1.5  Remark:  Aluminum Plate

Indoor Panel Antennas
Name: Directional Panel Antenna Power: 50W
Model: PA-727-8DBN/AJ Polarization: Vertical
Class: Directional Panel Impedance: 50 Ω
Freq: 698-2700MHz Connector: N/Female
Gain 6.5/8.0±1dB Size: 165X155mm
VSWR: < 1.80 Radome: ABS,White
PIM: <-150dBc@2X20W Weight: 0.65kg
Name: Directional Panel Antenna Power: 50W
Model: PA-727-8DB43D/AJ Polarization: Vertical
Class: Directional Panel Impedance: 50 Ω
Freq: 698-2700MHz Connector: 4.3-10/Female
Gain 6.5/8.0±1dB Size: 165X155mm
VSWR: < 1.80 Radome: ABS,White
PIM: <-150dBc@2X20W Weight: 0.65kg
Name: Directional Panel Antenna Power: 50W
Model: PA-740-8DBN/AJ Polarization: Vertical
Class: Directional Panel Impedance: 50 Ω
Freq: 698-4000MHz Connector: N/Female
Gain 5.5/8.5±0.5dB Size: 200X180mm
VSWR: < 1.80 Radome: ABS,White
PIM: <-153dBc@2X20W Weight: 0.65kg
Name: Directional Panel Antenna Power: 50W
Model: PA-740-8DB43D/AJ Polarization: Vertical
Class: Directional Panel Impedance: 50 Ω
Freq: 698-4000MHz Connector: 4.3-10/Female
Gain 5.5/8.5±0.5dB Size: 200X180mm
VSWR: < 1.80 Radome: ABS,White
PIM: <-153dBc@2X20W Weight: 0.65kg
Name: Directional Panel Antenna Power: 50W
Model: PA-727-8DBN/H Polarization: Vertical
Class: Directional Panel Impedance: 50 Ω
Freq: 698-2700MHz Connector: N/Female
Gain 6.5/7.5±0.5dB Size: 210X180mm
VSWR: < 1.50 Radome: ABS,White
PIM: <-140dBc@2X20W Weight: 0.50kg
Name: Directional Panel Antenna Power: 50W
Model: PA-727-8DBN/E Polarization: Vertical
Class: Directional Panel Impedance: 50 Ω
Freq: 698-2700MHz Connector: N/Female
Gain 6.5/7.5±0.5dB Size: 210X180mm
VSWR: < 1.50 Radome: ABS,White
PIM: <-150dBc@2X2W Weight: 0.50kg
Name: Directional Panel Antenna Power: 50W
Model: PA-827-8DBN/H Polarization: Vertical
Class: Directional Panel Impedance: 50 Ω
Freq: 800-2700MHz Connector: N/Female
Gain 6.5/7.5±0.5dB Size: 210X180mm
VSWR: < 1.50 Radome: ABS,White
PIM: <-140dBc@2X20W Weight: 0.50kg
Name: Directional Panel Antenna Power: 50W
Model: PA-827-8DBN/E Polarization: Vertical
Class: Directional Panel Impedance: 50 Ω
Freq: 800-2700MHz Connector: N/Female
Gain 6.5/7.5±0.5dB Size: 210X180mm
VSWR: < 1.50 Radome: ABS,White
PIM: <-150dBc@2X2W Weight: 0.50kg

Name: MIMO Panel Antenna Power: 50W
Model: MOPA-727-8DBN/AJ Polarization: ±45°
Class: MIMO Panel Impedance: 50 Ω
Freq: 698-2700MHz Connector: N/Female
Gain 6.5/8.1±1dB Size: 305X186mm
VSWR: < 1.5 ; < 2.0 Radome: ABS,White
PIM: <-150dBc@2X20W Weight: 0.90kg
Name: MIMO Panel Antenna Power: 50W
Model: MOPA-727-8DB43D/AJ Polarization: ±45°
Class: MIMO Panel Impedance: 50 Ω
Freq: 698-2700MHz Connector: 4.3-10/Female
Gain 6.5/8.1±1dB Size: 305X186mm
VSWR: < 1.5 ; < 2.0 Radome: ABS,White
PIM: <-150dBc@2X20W Weight: 0.90kg
Name: MIMO Panel Antenna Power: 50W
Model: MOPA-740-8DBN/AJ Polarization: ±45°
Class: MIMO Panel Impedance: 50 Ω
Freq: 698-4000MHz Connector: N/Female
Gain 5.0/8.5±1dB Size: 400X180mm
VSWR: < 1.5 ; < 2.0 Radome: ABS,White
PIM: <-153dBc@2X20W Weight: 1.50kg
Name: MIMO Panel Antenna Power: 50W
Model: MOPA-740-8DB43D/AJ Polarization: ±45°
Class: MIMO Panel Impedance: 50 Ω
Freq: 698-4000MHz Connector: 4.3-10/Female
Gain 5.0/8.5±1dB Size: 400X180mm
VSWR: < 1.5 ; < 2.0 Radome: ABS,White
PIM: <-153dBc@2X20W Weight: 1.50kg
Name: 4X4 MIMO Panel Antenna Power: 50W
Model: MOPA4X4-740-8DBN/AJ Polarization: ±45°
Class: 4X4 MIMO Panel Impedance: 50 Ω
Freq: 698-4000MHz Connector: N/Female
Gain 6.0/7.5±1dB Size: 308X420mm
VSWR: < 1.8 Radome: ABS,White
PIM: <-153dBc@2X20W Weight: 2.80kg
Name: 4X4 MIMO Panel Antenna Power: 50W
Model: MOPA4X4-740-8DB43D/AJ Polarization: ±45°
Class: 4X4 MIMO Panel Impedance: 50 Ω
Freq: 698-4000MHz Connector: 4.3-10/Female
Gain 6.0/7.5±1dB Size: 308X420mm
VSWR: < 1.8 Radome: ABS,White
PIM: <-153dBc@2X20W Weight: 2.80kg

Outdoor Panel Antennas
 Item Name:  Directional Panel Antenna  Beamwidth H:  30/45° ±6°
 Model:  PA-727-12DBN/OD  Beamwidth V:  45/60° ±6°
 Class:  Directional Panel  Polarization:  Vertical
 Frequency:  698-960,1710-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  256X170X56mm
 Gain:  11/12 dB  Weight:  0.50kg
 VSWR:  < 1.6  Remark:  Aluminum Plate

 Item Name:  Directional Panel Antenna  Beamwidth H:  68° ±10°
 Model:  PA-825-8DBN/OD  Beamwidth V:  58° ±10°
 Class:  Directional Panel  Polarization:  Vertical
 Frequency:  806-960,1710-2500MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  210X180X45mm
 Gain:  8 dB  Weight:  0.75kg
 VSWR:  < 1.5  Remark:  Aluminum Plate
 Item Name:  Directional Panel Antenna  Beamwidth H:  68° ±10°
 Model:  PA-825-8DBNH/OD  Beamwidth V:  58° ±10°
 Class:  Directional Panel  Polarization:  Vertical
 Frequency:  806-960,1710-2500MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  210X180X45mm
 Gain:  8 dB  Weight:  0.75kg
 VSWR:  < 1.5  (PIM< -140dBc) *  Remark:  Aluminum Plate
 Item Name:  Directional Panel Antenna  Beamwidth H:  75~115° ±10°
 Model:  PA-727-8DBNE/OD  Beamwidth V:  58° ±10°
 Class:  Directional Panel  Polarization:  Vertical
 Frequency:  698-960,1710-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  210X180X45mm
 Gain:  8 dB  Weight:  0.75kg
 VSWR:  < 1.5  Remark:  Aluminum Plate
 Item Name:  Directional Panel Antenna  Beamwidth H:  75~115° ±10°
 Model:  PA-727-8DBNH/OD  Beamwidth V:  58° ±10°
 Class:  Directional Panel  Polarization:  Vertical
 Frequency:  698-960,1710-2700MHz  Impedance:  50 Ω , N/F
 Power:  50W  Size:  210X180X45mm
 Gain:  8 dB  Weight:  0.75kg
 VSWR:  < 1.5  (PIM< -140dBc) *  Remark:  Aluminum Plate

GPS Timing Reference Antennas
 Item Name:  GPS Timing Antenna  3dB Beamwidth  110 ±10
 Model:  GPS-1575-28DBN  Front to Back:  10dB MIN
 Class:  Timing Antenna  Axial Ratio:  5dB MAX
 Frequency:  1575.42 ±5MHz  Voltage:  DC3.5~9V
 Noise Figure:  2.7 dB MAX  Current:  25mA MAX
 Gain:  28 dB  Impedance:  50 Ω , N/F
 VSWR:  ≤ 2.5  Weight:  1.0kg
 Item Name:  GPS Timing Antenna  3dB Beamwidth  110 ±10
 Model:  GPS-1116-43DBN  Front to Back:  10dB MIN
 Class:  Timing Antenna  Axial Ratio:  5dB MAX
 Frequency:  1166-1218MHz  Voltage:  DC3~12V
 1559-1606MHz  Current:  45mA MAX
 Gain:  43 dB  Impedance:  50 Ω , N/F
 VSWR:  ≤ 1.8  Weight:  1.0kg
 Item Name:  GPS Timing Antenna  3dB Beamwidth  110 ±10
 Model:  GPS-1575-38DBN  Front to Back:  10dB MIN
 Class:  Timing Antenna  Axial Ratio:  5dB MAX
 Frequency:  1575.42 ±5MHz  Voltage:  DC3.5~9V
 Noise Figure:  2.7 dB MAX  Current:  25mA MAX
 Gain:  38 dB  Impedance:  50 Ω , N/F
 VSWR:  ≤ 2.5  Weight:  1.0kg
 Item Name:  GNSS Timing Antenna  Polarization:  RHCP
 Model:  GPNSS-11-16-40DBT/Z  Front to Back:  10dB MIN
 Class:  Timing Antenna  Axial Ratio:  3dB MAX
 Frequency:  GPS,GLONASS,Galileo  Voltage:  DC3.3~12V
 Noise Figure:  2.5 dB MAX  Current:  45mA MAX
 Gain:  40 dB  Impedance:  50 Ω , TNC/F
 VSWR:  ≤ 2.0  Weight:  1.0kg
 Item Name:  GNSS Timing Antenna  Polarization:  RHCP
 Model:  GNSS-11-17-40DBT/B  Horizontal:  360
 Class:  Timing Antenna  Axial Ratio:  3dB MAX
 Frequency:  GPS,GLONASS,Galileo  Voltage:  DC3.3~16V
 Noise Figure:  2.0 dB MAX  Current:  45mA MAX
 Gain:  40 dB (LNA)  Impedance:  50 Ω , TNC/F
 VSWR:  ≤ 2.0  Weight:  1.0kg

  * PIM < -140dBc@ 2X43dBm or PIM < -150dBc@ 2X33dBm

INDOOR & OUTDOOR BESTROW ANTENNAE

格鲁沃科技


Copyright © WWW.GELVO.COM All rights reserved
