PRODUCT >> OTHERS Termination Load (Dummy Load)

BNC Series Termination Load

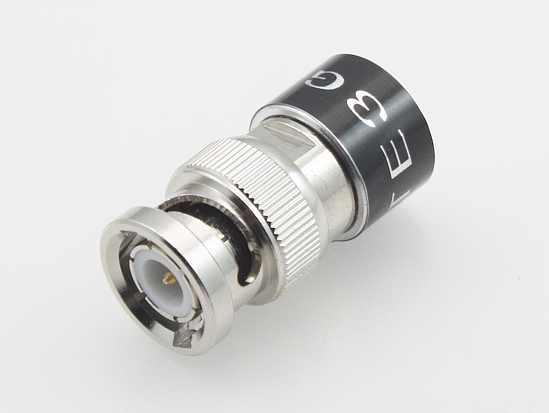

 Item Name:  Termination Load  V.S.W.R:  ≤ 1.20
 Model:  TE-1/2W-3GBNCR  Temperature:  -35℃- +85℃
 Frequency:  DC-3G  Inner Plating:  Silver Plate
 Impedance:  50 Ω  Body Plating  Black *
 Connector:  BNC-Male or Female  Radiator:  Aluminium,RoHS
 Power:  1/2 W (Average)  Annotation:  Indoor/Outdoor Use
 Item Name:  Termination Load  V.S.W.R:  ≤ 1.20
 Model:  TE-1W-3GBNC/L  Temperature:  -35℃- +85℃
 Frequency:  DC-3G  Inner Plating:  Silver Plate
 Impedance:  50 Ω  Body Plating  Nickel *
 Connector:  BNC-Male or Female  Radiator:  Brass  (Low Cost)
 Power:  1 W (Average)  Annotation:  Indoor Use

75Ω BNC Series Termination Load

 Item Name:  Termination Load  V.S.W.R:  ≤ 1.20
 Model:  TE/75-1/2W-3GBNCR  Temperature:  -35℃- +85℃
 Frequency:  DC-3G  Inner Plating:  Silver Plate
 Impedance:  75 Ω  Body Plating  Black *
 Connector:  BNC-Male or Female  Radiator:  Aluminium,RoHS
 Power:  1/2 W (Average)  Annotation:  Indoor/Outdoor Use
 Item Name:  75 Ω Termination Load  V.S.W.R:  ≤ 1.20
 Model:  TE/75-1W-3GBNC/L  Temperature:  -35℃- +85℃
 Frequency:  DC-3G  Inner Plating:  Silver Plate
 Impedance:  75 Ω  Body Plating  Nickel *
 Connector:  BNC-Male or Female  Radiator:  Brass
 Power:  1 W (Average)  Annotation:  Indoor Use

75Ω F Type Series Termination Load
 Item Name:  75 Ω Termination Load  V.S.W.R:  ≤ 1.20
 Model:  TE/75-1W-3GFM  Temperature:  -35℃- +85℃
 Frequency:  DC-3G  Inner Plating:  Silver Plate
 Impedance:  75 Ω  Body Plating  Nickel *
 Connector:  F-Male or Female  Radiator:  Brass
 Power:  1 W (Average)  Annotation:  Indoor Use

 * When take-down the load,circumgyrate the connector only,do not circumgyrate the radiator body.

OTHER SERIES Termination Load (Dummy Load)
