  PRODUCT >> JUMPER

Foam Dielectric Cable Jumper Coaxial Cable Jumper
       1/4",3/8",5/8",1/2",7/8" Foam Dielectric Feeder Cable Jumpers:
         Structure Dimension:
No.
Description *

No.

Description *
A
 N/Male - N/Male
L

 7/16(DIN)/Male -7/16(DIN)/Female

B
 N/Male - N/Female
M

 7/16(DIN)/Female - 7/16(DIN)/Female

C

 N/Female - N/Female

N
 N/Male(RA) - N/Male(RA)
D
 N/Male - 7/16(DIN)/Male O
 N/Male(RA) - N/Female
E

 N/Male - 7/16(DIN)/Female

P  N/Male - 7/16(DIN)/Male(RA)
F

 N/Female - 7/16(DIN)/Male

Q  7/16(DIN)/Male(RA)-7/16(DIN)/Male(RA)
G

 7/16(DIN)/Male-7/16(DIN)/Male

R  7/16(DIN)/Male(RA)-7/16(DIN)/Female
H  N/Male - 4.3-10/Male S  7/16(DIN)/Male - 4.3-10/Male
I  N/Male - 4.3-10/Female T  7/16(DIN)/Male - 4.3-10/Female
J  N/Female - 4.3-10/Male U  7/16(DIN)/Female - 4.3-10/Male
K  N/Female - 4.3-10/Female V  7/16(DIN)/Female - 4.3-10/Female

Solder Type Jumper Clamp Type Jumper
Item
Specification
Frequency Range
DC~7.5GHz
Impedance
50Ω
VSWR
≤1.08 (0-1.0G)
≤1.10 (1.7-2.7G)
≤1.13 (2.7-3.0G)
PIM

N

≤ -160dBc@2X43dBm
7/16 DIN
4.1/9.5 MINI DIN
4.3/10 MINI DIN
Insulation Resistance
≥5000MΩ
Dielectric Withstanding Voltage 2500 rms (DC)
Insertion Loss ≤0.21XL+0.2dB (0.8-2.7G)
Waterproof IP68  24hr,1m,20
Durability 500 Cycles
Connector N,7/16(DIN),4.1/9.5,4.3/10
Operating Temperature Range
-40~+85℃
Humidity
≤95%
Air pressure
70~106Kpa

       * The cable length can customize with 0.5m,1m,1.5m,1.5m,2m,2.5m,3m,4m,5m,7m,10m,15,30,40,50,100m.

* The cable can customize with 1/4",1/4"SF,3/8",3/8"SF,1/2",1/2"SF Feeder Cable.

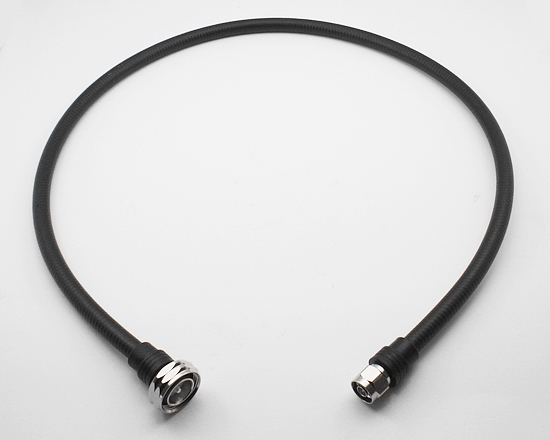

Solder Type 1/2" Superflexible Jumper




  Waterproof 1/4",3/8",5/8",1/2",7/8" Foam Dielectric Feeder Cable Jumpers:

         Structure Dimension:

No.
Description *

No.

Description *
A
 N/Male - N/Male
L

 7/16(DIN)/Male -7/16(DIN)/Female

B
 N/Male - N/Female
M

 7/16(DIN)/Female - 7/16(DIN)/Female

C
 N/Female - N/Female N
 N/Male(RA) - N/Male(RA)
D
 N/Male - 7/16(DIN)/Male O
 N/Male(RA) - N/Female
E
 N/Male - 7/16(DIN)/Female P  N/Male - 7/16(DIN)/Male(RA)
F
 N/Female - 7/16(DIN)/Male Q  7/16(DIN)/Male(RA)-7/16(DIN)/Male(RA)
G
 7/16(DIN)/Male-7/16(DIN)/Male R  7/16(DIN)/Male(RA)-7/16(DIN)/Female
H  N/Male - 4.3-10/Male S  7/16(DIN)/Male - 4.3-10/Male
I  N/Male - 4.3-10/Female T  7/16(DIN)/Male - 4.3-10/Female
J  N/Female - 4.3-10/Male U  7/16(DIN)/Female - 4.3-10/Male
K  N/Female - 4.3-10/Female V  7/16(DIN)/Female - 4.3-10/Female

Item
Specification
Frequency Range
DC~7.5GHz
Impedance
50Ω
VSWR
≤1.08 (0-1.0G)
≤1.10 (1.7-2.7G)
≤1.13 (2.7-3.0G)
PIM

N

≤ -160dBc@2X43dBm
7/16 DIN
4.1/9.5 MINI DIN
4.3/10 MINI DIN
Insulation Resistance
≥5000MΩ
Dielectric Withstanding Voltage 2500 rms (DC)
Insertion Loss ≤0.21XL+0.2dB (0.8-2.7G)
Waterproof IP68  24hr,1m,20
Durability 500 Cycles
Connector N,7/16(DIN),4.1/9.5,4.3/10
Operating Temperature Range
-40~+85℃
Humidity
≤95%
Air pressure
70~106Kpa

       * The cable length can customize with 0.5m,1m,1.5m,1.5m,2m,2.5m,3m,4m,5m,7m,10m,15,30,40,50,100m.

* The cable can customize with 1/4",1/4"SF,3/8",3/8"SF,1/2",1/2"SF Feeder Cable.

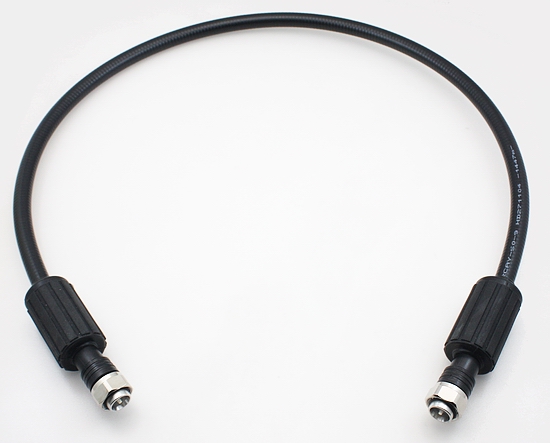

Waterproof Solder Type 1/2" Superflexible Jumper
