  PRODUCT >> JUMPER >> MQ4 & MQ5 JUMPER

　
MQ Series Jumper Foam Dielectric Cable Jumper Coaxial Cable Jumper

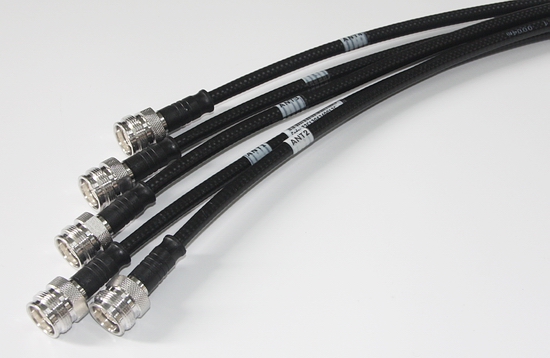

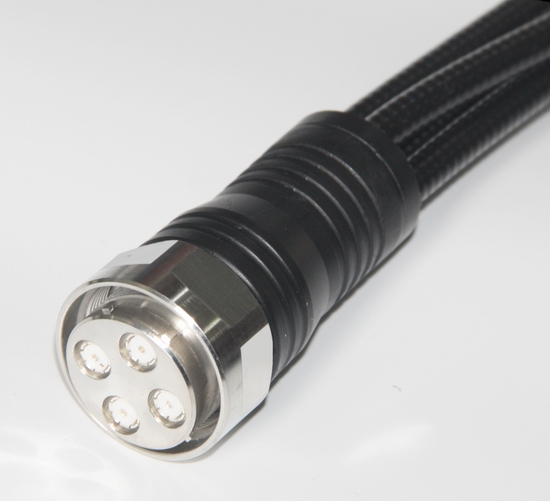

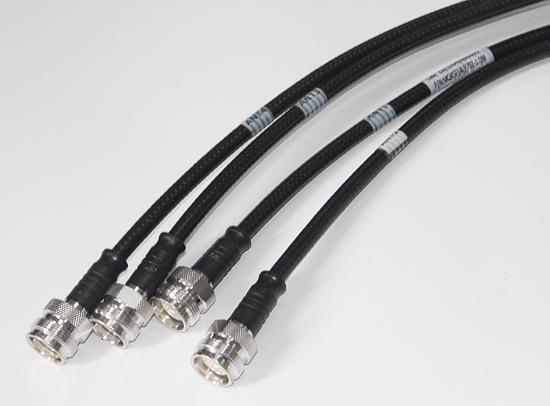

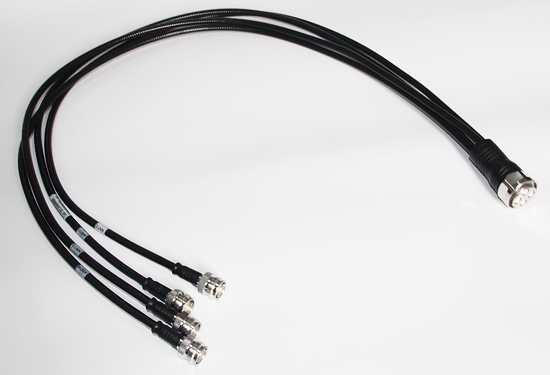

       MQ4 Series Jumper:
        1/4" Superflexible Cable MQ4 Female Jumpers:

        Structure Dimension:
Model
Description
Cable *
MQ4/F-N/M-1/4”SF-X.XM
  MQ4 Female to N Male 1/4" Superflexible Cable
MQ4/F-N/F-1/4”SF-X.XM
  MQ4 Female to N Female 1/4" Superflexible Cable
MQ4/F-DIN/M-1/4”SF-X.XM
  MQ4 Female to DIN Male 1/4" Superflexible Cable
MQ4/F-DIN/F-1/4”SF-X.XM
  MQ4 Female to DIN Female 1/4" Superflexible Cable
MQ4/F-4.3/M-1/4”SF-X.XM
  MQ4 Female to 4.3/10 Male 1/4" Superflexible Cable
MQ4/F-4.3/F-1/4”SF-X.XM
  MQ4 Female to 4.3/10 Female 1/4" Superflexible Cable
MQ4/F-NEX10/M-1/4”SF-X.XM
  MQ4 Female to NEX10 Male 1/4" Superflexible Cable
MQ4/F-NEX10/F-1/4”SF-X.XM
  MQ4 Female to NEX10 Female 1/4" Superflexible Cable
　

       Electrical Specification:
Item
 Specification
Connector A
MQ4 Female
Connector B N,DIN,4.3/10,NEX10
Cable 1/4" Superflexible Cable
Frequency Range DC~6GHz
Impedance
50Ω
VSWR
 ≤1.15 (DC-2.7G)
≤1.20 (2.7-4.2G)
≤1.35 (4.2-6.0G)
PIM3 (1800MHz)
≤ -155dBc@2X43dBm
Insulation Resistance
≥5000MΩ
Dielectric Withstanding Voltage 1000 rms (DC)
Insertion Loss ≤0.37*L+0.20dB (DC-3GHz,L=Jumper Length,m)
Waterproof IP68  24hr,1m,20℃
Operating Temperature Range
-45~+85℃
RoHS
 Compliant
　

     MQ4 Series Jumper:
         1/3" Superflexible Cable MQ4 Female Jumpers:
         Structure Dimension:
Model
Description
Cable *
MQ4/F-N/M-1/3”SF-X.XM
  MQ4 Female to N Male 1/3" Superflexible Cable
MQ4/F-N/F-1/3”SF-X.XM
  MQ4 Female to N Female 1/3" Superflexible Cable
MQ4/F-DIN/M-1/3”SF-X.XM
  MQ4 Female to DIN Male 1/3" Superflexible Cable
MQ4/F-DIN/F-1/3”SF-X.XM
  MQ4 Female to DIN Female 1/3" Superflexible Cable
MQ4/F-4.3/M-1/3”SF-X.XM
  MQ4 Female to 4.3/10 Male 1/3" Superflexible Cable
MQ4/F-4.3/F-1/3”SF-X.XM
  MQ4 Female to 4.3/10 Female 1/3" Superflexible Cable
MQ4/F-NEX10/M-1/3”SF-X.XM
  MQ4 Female to NEX10 Male 1/3" Superflexible Cable
MQ4/F-NEX10/F-1/3”SF-X.XM
  MQ4 Female to NEX10 Female 1/3" Superflexible Cable
　
         Electrical Specification:
Item
 Specification
Connector A
MQ4 Female
Connector B N,DIN,4.3/10,NEX10
Cable 1/3" Superflexible Cable
Frequency Range DC~6GHz
Impedance
50Ω
VSWR
 ≤1.15 (DC-2.7G)
≤1.20 (2.7-4.2G)
≤1.35 (4.2-6.0G)
PIM3 (1800MHz)
≤ -155dBc@2X43dBm
Insulation Resistance
≥5000MΩ
Dielectric Withstanding Voltage 1000 rms (DC)
Insertion Loss ≤0.26*L+0.20dB (DC-3GHz,L=Jumper Length,m)
Waterproof IP68  24hr,1m,20℃
Operating Temperature Range
-45~+85℃
RoHS
 Compliant

　

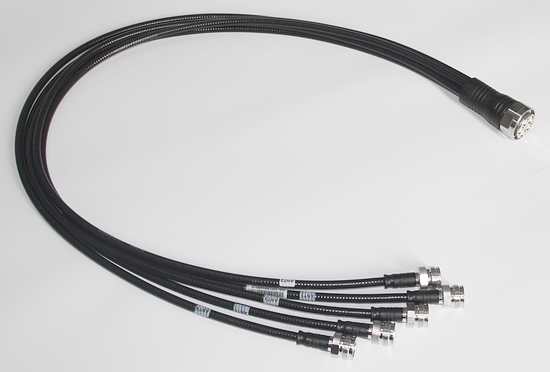

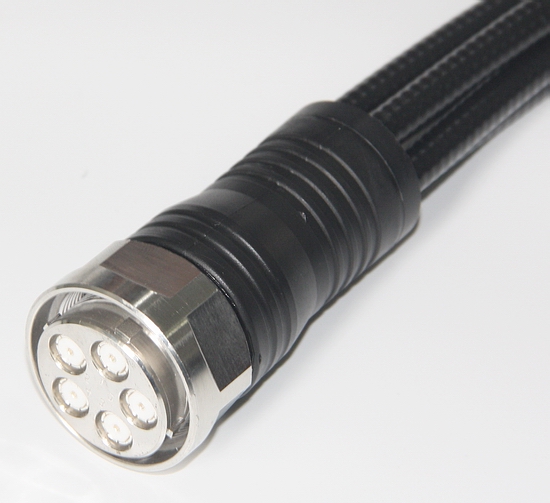

  MQ5 Series Jumper:

        1/4" Superflexible Cable MQ5 Female Jumpers:

        Structure Dimension:
Model
Description
Cable *
MQ5/F-N/M-1/4”SF-X.XM
  MQ4 Female to N Male 1/4" Superflexible Cable
MQ5/F-N/F-1/4”SF-X.XM
  MQ4 Female to N Female 1/4" Superflexible Cable
MQ5/F-DIN/M-1/4”SF-X.XM
  MQ4 Female to DIN Male 1/4" Superflexible Cable
MQ5/F-DIN/F-1/4”SF-X.XM
  MQ4 Female to DIN Female 1/4" Superflexible Cable
MQ5/F-4.3/M-1/4”SF-X.XM
  MQ4 Female to 4.3/10 Male 1/4" Superflexible Cable
MQ5/F-4.3/F-1/4”SF-X.XM
  MQ4 Female to 4.3/10 Female 1/4" Superflexible Cable
MQ5/F-NEX10/M-1/4”SF-X.XM
  MQ4 Female to NEX10 Male 1/4" Superflexible Cable
MQ5/F-NEX10/F-1/4”SF-X.XM
  MQ4 Female to NEX10 Female 1/4" Superflexible Cable
　

        Electrical Specification:
Item
 Specification
Connector A
MQ5 Female
Connector B N,DIN,4.3/10,NEX10
Cable 1/4" Superflexible Cable
Frequency Range DC~6GHz
Impedance
50Ω
VSWR
 ≤1.15 (DC-2.7G)
≤1.20 (2.7-4.2G)
≤1.35 (4.2-6.0G)
PIM3 (1800MHz)
≤ -155dBc@2X43dBm
Insulation Resistance
≥5000MΩ
Dielectric Withstanding Voltage 1000 rms (DC)
Insertion Loss ≤0.37*L+0.20dB (DC-3GHz,L=Jumper Length,m)
Waterproof IP68  24hr,1m,20℃
Operating Temperature Range
-45~+85℃
RoHS
 Compliant
　

  MQ5 Series Jumper:

        1/3" Superflexible Cable MQ5 Female Jumpers:

        Structure Dimension:
Model
Description
Cable *
MQ5/F-N/M-1/3”SF-X.XM
  MQ4 Female to N Male 1/3" Superflexible Cable
MQ5/F-N/F-1/3”SF-X.XM
  MQ4 Female to N Female 1/3" Superflexible Cable
MQ5/F-DIN/M-1/3”SF-X.XM
  MQ4 Female to DIN Male 1/3" Superflexible Cable
MQ5/F-DIN/F-1/3”SF-X.XM
  MQ4 Female to DIN Female 1/3" Superflexible Cable
MQ5/F-4.3/M-1/3”SF-X.XM
  MQ4 Female to 4.3/10 Male 1/3" Superflexible Cable
MQ5/F-4.3/F-1/3”SF-X.XM
  MQ4 Female to 4.3/10 Female 1/3" Superflexible Cable
MQ5/F-NEX10/M-1/3”SF-X.XM
  MQ4 Female to NEX10 Male 1/3" Superflexible Cable
MQ5/F-NEX10/F-1/3”SF-X.XM
  MQ4 Female to NEX10 Female 1/3" Superflexible Cable
　

       Electrical Specification:
Item
 Specification
Connector A
MQ5 Female
Connector B N,DIN,4.3/10,NEX10
Cable 1/3" Superflexible Cable
Frequency Range DC~6GHz
Impedance
50Ω
VSWR
 ≤1.15 (DC-2.7G)
≤1.20 (2.7-4.2G)
≤1.35 (4.2-6.0G)
PIM3 (1800MHz)
≤ -155dBc@2X43dBm
Insulation Resistance
≥5000MΩ
Dielectric Withstanding Voltage 1000 rms (DC)
Insertion Loss ≤0.26*L+0.20dB (DC-3GHz,L=Jumper Length,m)
Waterproof IP68  24hr,1m,20℃
Operating Temperature Range
-45~+85℃
RoHS
 Compliant

　

    * The cable length can customize with 0.5m,1m,1.5m,1.5m,2m,2.5m,3m,4m,5m,7m,10m
