  PRODUCT >> 120 Ω PCM CABLE (PCM-H)

120 OHM PCM-H Cable 120 OHM PCM-S Cable

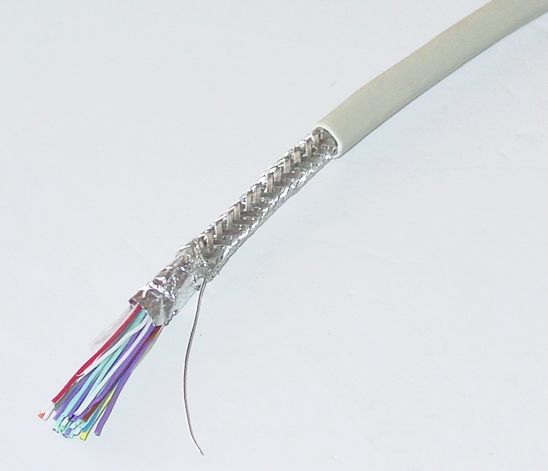

  120 Ω PCM-H Cable ( Assemble Pair With Overall Shield )

Electrical Characteristics:

Item

Specification

Temperature range温度范围

-20℃ to+70℃

Min. bending radius弯曲半径

15×电缆外径 (Cable Dia.)

Insulation Resistance绝缘电阻

500MΩ×km.min.

Test voltage测试电压

1000v,50Hz,1min.

Mutual capacitance工作电容

C/C,50nF/km,max.

Impedance特性阻抗

120±10 Ω

Attenuation衰减( dB/100m )

0.40mm   1MHZ   2.80

0.50MM   1 MHZ   2.10



  Technical Data:

PairXDiameter

Insulation

Pair Shielding

Overall Shielding

Outside Diameter

Weight

8×2×0.40

Solid PE  1.30

None

AL Foil / Drain Wire*

7.0

55.9

12×2×0.40

Solid PE  1.30

None

AL Foil / Drain Wire*

8.3

78.3

16×2×0.40

Solid PE  1.30

None

AL Foil / Drain Wire*

9.2

97.2

32×2×0.40

Solid PE  1.30

None

AL Foil / Drain Wire*

12.4

177.3

8×2×0.50

Solid PE  1.30 None AL Foil / Drain Wire*

8.0

79.8

12×2×0.50

Solid PE  1.30 None AL Foil / Drain Wire* 9.4 106.3

16×2×0.50

Solid PE  1.30 None AL Foil / Drain Wire* 12.9 144.7

32×2×0.50

Solid PE  1.30 None AL Foil / Drain Wire* 16.3 263.9

8×2×0.60

Solid PE  1.30 None AL Foil / Drain Wire* 9.1 --

12×2×0.60

Solid PE  1.30 None AL Foil / Drain Wire* 11.5 --

16×2×0.60

Solid PE  1.30 None AL Foil / Drain Wire* 15.6 --

32×2×0.60

Solid PE  1.30 None AL Foil / Drain Wire* 19.9 --

   *  Note: Can customization the shielding with copper braid.

PCM-H Cable ( Assemble Pair With Overall Shield )
