PRODUCT
>>

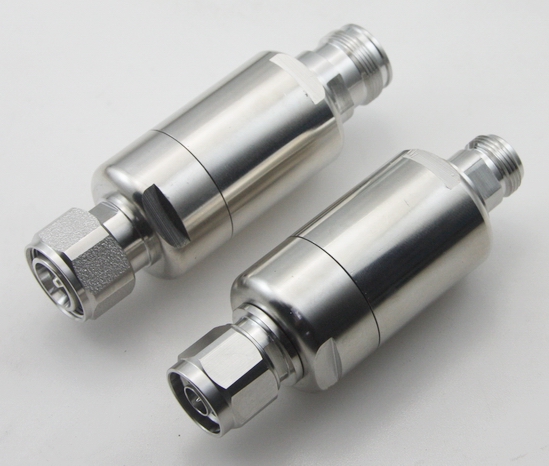

DC-BLOCK(DC-STOP)
Item Name:
Low PIM DC Block
Insertion loss:
≤ 0.2dB
Model:
PDS-260-500-N/MF
V.S.W.R:
≤ 1.20
Class:
DC Block (DC-Stop)
PIM:
≤
-160dBc@2X20W
Frequency:
250-5930MHz
Connector:
N-M/F
Pass
Power:
500
W
Temperature:
-35
℃
- +
75
℃
Item Name:
Low PIM DC Block
Insertion loss:
≤
0.10
Model:
PDS-727-200-NLP
V.S.W.R:
≤ 1.20
Class:
DC Block (DC-Stop)
PIM:
≤
-150dBc@2X20W
Frequency:
DC-3000MHz
Connector:
N-M/F(50 Ω)
Pass
Power:
200
W
Temperature:
-55
℃
- +
80
℃
Item Name:
Low PIM DC Block
Insertion loss:
≤ 0.2dB
Model:
PDS-260-500-43MD/MF
V.S.W.R:
≤ 1.20
Class:
DC Block (DC-Stop)
PIM:
≤
-160dBc@2X20W
Frequency:
250-5930MHz
Connector:
4.3/10-M/F
Pass
Power:
500
W
Temperature:
-35
℃
- +
75
℃
Item Name:
Low PIM DC Block
Insertion loss:
≤
0.10
Model:
PDS-727-700-D
LP
V.S.W.R:
≤ 1.20
Class:
DC Block (DC-Stop)
PIM:
≤
-150dBc@2X20W
Frequency:
DC-3000MHz
Connector:
DIN/M-DIN/F(50 Ω)
Pass
Power:
700
W
Temperature:
-40
℃
- +
80
℃
Item Name:
High Voltage DC Block
Insertion loss:
≤
0.30
Model:
PDS-140-3000V-43D/MF
V.S.W.R:
≤ 1.25
Class:
DC Block (DC-Stop)
PIM:
≤
-160dBc@2X20W
Frequency:
DC-4000MHz
Connector:
43/M-43/F(50 Ω)
Voltage:
3000V
Temperature:
-40
℃
- +
80
℃
Item Name:
High Voltage DC Block
Insertion loss:
≤
0.30
Model:
PDS-160-3000V-43D/MF
V.S.W.R:
≤ 1.25
Class:
DC Block (DC-Stop)
PIM:
≤
-160dBc@2X20W
Frequency:
DC-6000MHz
Connector:
43/M-43/F(50 Ω)
Voltage:
3000V
Temperature:
-40
℃
- +
80
℃
Item Name:
SMA DC Block
Insertion loss:
≤ 1.10
Model:
PT-DC-18GSC
V.S.W.R:
≤ 1.25
Class:
DC Block(DC-Stop)
Impedance:
50 Ω
Frequency:
DC-18000MHz
Connector:
SMA-M/F
Pass
Power:
2
W
Temperature:
-55
℃
- +
100
℃
Item Name:
2.92mm DC Block
Insertion loss:
≤ 1.35
Model:
PT-DS-40G-2.92M/F
V.S.W.R:
≤ 1.55
Class:
DC Block(DC-Stop)
Impedance:
50 Ω
Frequency:
100-40000MHz
Connector:
2.92mm-M/F
Pass
Power:
50
W
Temperature:
-55
℃
- +
100
℃
Item Name:
N Type DC Block
Insertion loss:
≤
0.80
Model:
PT-DC-3GNC
V.S.W.R:
≤ 1.25
Class:
DC Block(DC-Stop)
Impedance:
50 Ω
Frequency:
DC-3000MHz
Connector:
N-M/F
Pass
Power:
100
W
Temperature:
-55
℃
- +
80
℃
Item Name:
N Type DC Block
Insertion loss:
≤
0.30
Model:
PT-DC-3GNJ
V.S.W.R:
≤ 1.25
Class:
DC Block(DC-Stop)
Impedance:
50 Ω
Frequency:
DC-3000MHz
Connector:
N-M/F
Pass
Power:
100
W
Temperature:
-40
℃
- +
80
℃
