GELVO TECHNOLOGY Power Divider

5-1000MHz Micro Power Splitter/Divider

Item Name:

2 Way MicroStrip Type

V.S.W.R:

≤ 1.20

Model:

PS-05.100-0.5-2MNI

Temperature:

-25℃- +75℃

Frequency:

5-1000MHz

Connector:

N-Female , 50 Ω

Power:

0.5W Average

Annotation:

Indoor/Outdoor Use

PIM:

None

Waterproof:

IP65 , RoHS

Item Name:

4 Way MicroStrip Type

V.S.W.R:

≤ 1.30

Model:

PS-05.100-0.5-4MNI

Temperature:

-25℃- +75℃

Frequency:

5-1000MHz

Connector:

N-Female , 50 Ω

Power:

0.5W Average

Annotation:

Indoor/Outdoor Use

PIM:

None

Waterproof:

IP65 , RoHS

Item Name:

8 Way MicroStrip Type

V.S.W.R:

≤ 1.30

Model:

PS-05.100-0.5-8MNI

Temperature:

-25℃- +75℃

Frequency:

5-1000MHz

Connector:

N-Female , 50 Ω

Power:

0.5W Average

Annotation:

Indoor/Outdoor Use

Insertion Loss:

None

Waterproof:

IP65 , RoHS

Item Name:

4 Way MicroStrip Type

V.S.W.R:

≤ 1.30

Model:

PS-05.100-0.5-4MSMI

Temperature:

-25℃- +75℃

Frequency:

5-1000MHz

Connector:

SMA-Female , 50 Ω

Power:

0.5W Average

Annotation:

Indoor/Outdoor Use

Insertion Loss:

None

Waterproof:

IP65 , RoHS

70-960MHz Low Power Splitter/Divider

Item Name:

2 Way MicroStrip Type

V.S.W.R:

≤ 1.50

Model:

PS-07.96-100-2MNI

Temperature:

-25℃- +75℃

Frequency:

70-960MHz

Connector:

N-Female , 50 Ω

Power:

100W Average

Annotation:

Indoor Use

PIM:

-130dBc , 2X43dBm

Waterproof:

IP65 , RoHS

120-240MHz Low Power Splitter/Divider

Item Name:

2 Way MicroStrip Type

V.S.W.R:

≤ 1.25

Model:

PS-12.24-100-2MNI

Temperature:

-25℃- +75℃

Frequency:

120-240MHz

Connector:

N-Female , 50 Ω

Power:

100W Average

Annotation:

Indoor Use

PIM:

-130dBc , 2X43dBm

Waterproof:

IP65 , RoHS

134-174MHz Low Power Splitter/Divider

Item Name:

2 Way MicroStrip Type

V.S.W.R:

≤ 1.30

Model:

PS-13.17-50-2MNB

Temperature:

-25℃- +75℃

Frequency:

134-174MHz

Connector:

N-Female , 50 Ω

Power:

50W Average

Annotation:

Indoor Use

Splitting Loss:

3.0dB

Waterproof:

IP65 , RoHS

Item Name:

3 Way MicroStrip Type

V.S.W.R:

≤ 1.35

Model:

PS-13.17-50-3MNB

Temperature:

-25℃- +75℃

Frequency:

134-174MHz

Connector:

N-Female , 50 Ω

Power:

50W Average

Annotation:

Indoor Use

Splitting Loss:

4.8dB

Waterproof:

IP65 , RoHS

Item Name:

4 Way MicroStrip Type

V.S.W.R:

≤ 1.35

Model:

PS-13.17-50-4MNB

Temperature:

-25℃- +75℃

Frequency:

134-174MHz

Connector:

N-Female , 50 Ω

Power:

50W Average

Annotation:

Indoor Use

Splitting Loss:

6.0dB

Waterproof:

IP65 , RoHS

134-960MHz(136-960MHz) Low Power Splitter/Divider

Item Name:

2 Way MicroStrip Type

V.S.W.R:

≤ 1.25

Model:

PS-13.96-50-2MNI

Temperature:

-25℃- +75℃

Frequency:

134-960MHz

Connector:

N-Female , 50 Ω

Power:

50W Average

Annotation:

Indoor Use

Splitting Loss:

3.0dB

Waterproof:

IP65 , RoHS

Item Name:

3 Way MicroStrip Type

V.S.W.R:

≤ 1.30

Model:

PS-13.96-50-3MNI

Temperature:

-25℃- +75℃

Frequency:

134-960MHz

Connector:

N-Female , 50 Ω

Power:

50W Average

Annotation:

Indoor Use

Splitting Loss:

4.8dB

Waterproof:

IP65 , RoHS

Item Name:

4 Way MicroStrip Type

V.S.W.R:

≤ 1.30

Model:

PS-13.96-50-4MNI

Temperature:

-25℃- +75℃

Frequency:

134-960MHz

Connector:

N-Female , 50 Ω

Power:

50W Average

Annotation:

Indoor Use

Splitting Loss:

6.0dB

Waterproof:

IP65 , RoHS

300-500MHz Low Power Splitter/Divider

Item Name:

2 Way MicroStrip Type

V.S.W.R:

≤ 1.20

Model:

PS-30.50-100-2MNI

Temperature:

-25℃- +75℃

Frequency:

300-500MHz

Connector:

N-Female , 50 Ω

Power:

100W Average

Annotation:

Indoor Use

PIM:

-130dBc , 2X43dBm

Waterproof:

IP65 , RoHS

Item Name:

3 Way MicroStrip Type

V.S.W.R:

≤ 1.25

Model:

PS-30.50-100-3MNI

Temperature:

-25℃- +75℃

Frequency:

300-500MHz

Connector:

N-Female , 50 Ω

Power:

100W Average

Annotation:

Indoor Use

PIM:

-130dBc , 2X43dBm

Waterproof:

IP65 , RoHS

Item Name:

4 Way MicroStrip Type

V.S.W.R:

≤ 1.30

Model:

PS-30.50-100-4MNI

Temperature:

-25℃- +75℃

Frequency:

300-500MHz

Connector:

N-Female , 50 Ω

Power:

100W Average

Annotation:

Indoor Use

PIM:

-130dBc , 2X43dBm

Waterproof:

IP65 , RoHS

300-960MHz Low Power Splitter/Divider

Item Name:

2 Way MicroStrip Type

V.S.W.R:

≤ 1.20

Model:

PS-30.96-100-2MNI

Temperature:

-25℃- +75℃

Frequency:

300-960MHz

Connector:

N-Female , 50 Ω

Power:

100W Average

Annotation:

Indoor Use

PIM:

-130dBc , 2X43dBm

Waterproof:

IP65 , RoHS

Item Name:

3 Way MicroStrip Type

V.S.W.R:

≤ 1.25

Model:

PS-30.96-100-3MNI

Temperature:

-25℃- +75℃

Frequency:

300-960MHz

Connector:

N-Female , 50 Ω

Power:

100W Average

Annotation:

Indoor Use

PIM:

-130dBc , 2X43dBm

Waterproof:

IP65 , RoHS

Item Name:

4 Way MicroStrip Type

V.S.W.R:

≤ 1.35

Model:

PS-30.96-100-4MNI

Temperature:

-25℃- +75℃

Frequency:

300-960MHz

Connector:

N-Female , 50 Ω

Power:

100W Average

Annotation:

Indoor Use

PIM:

-130dBc , 2X43dBm

Waterproof:

IP65 , RoHS

800-2500MHz Low Power Splitter/Divider

Item Name:

2 Way MicroStrip Type

V.S.W.R:

≤ 1.20

Model:

PS-825-50-2MNH

Temperature:

-25℃- +75℃

Frequency:

800-2500MHz

Connector:

N-Female , 50 Ω

Power:

50W/100W Average

Annotation:

Indoor/Outdoor Use

PIM:

-150dBc , 2X43dBm

Waterproof:

IP65 , RoHS

Item Name:

3 Way MicroStrip Type

V.S.W.R:

≤ 1.25

Model:

PS-825-50-3MNH

Temperature:

-25℃- +75℃

Frequency:

800-2500MHz

Connector:

N-Female , 50 Ω

Power:

50W/100W Average

Annotation:

Indoor/Outdoor Use

PIM:

-150dBc , 2X43dBm

Waterproof:

IP65 , RoHS

Item Name:

4 Way MicroStrip Type

V.S.W.R:

≤ 1.30

Model:

PS-825-50-4MNH

Temperature:

-25℃- +75℃

Frequency:

800-2500MHz

Connector:

N-Female , 50 Ω

Power:

50W/100W Average

Annotation:

Indoor/Outdoor Use

PIM:

-150dBc , 2X43dBm

Waterproof:

IP65 , RoHS

Item Name:

2 Way MicroStrip Type

V.S.W.R:

≤ 1.20

Model:

PS-825-50-2MNI

Temperature:

-25℃- +75℃

Frequency:

800-2500MHz

Connector:

N-Female , 50 Ω

Power:

50W/100W Average

Annotation:

Indoor/Outdoor Use

PIM:

-130dBc , 2X43dBm

Waterproof:

IP65 , RoHS

Item Name:

3 Way MicroStrip Type

V.S.W.R:

≤ 1.25

Model:

PS-825-50-3MNI

Temperature:

-25℃- +75℃

Frequency:

800-2500MHz

Connector:

N-Female , 50 Ω

Power:

50W/100W Average

Annotation:

Indoor/Outdoor Use

PIM:

-130dBc , 2X43dBm

Waterproof:

IP65 , RoHS

Item Name:

4 Way MicroStrip Type

V.S.W.R:

≤ 1.30

Model:

PS-825-50-4MNI

Temperature:

-25℃- +75℃

Frequency:

800-2500MHz

Connector:

N-Female , 50 Ω

Power:

50W/100W Average

Annotation:

Indoor/Outdoor Use

PIM:

-130dBc , 2X43dBm

Waterproof:

IP65 , RoHS

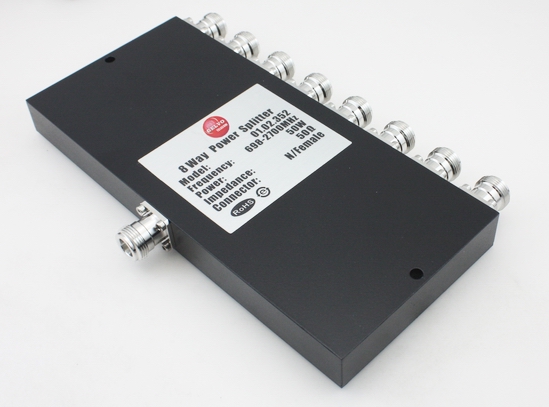

Item Name:

8 Way MicroStrip Type

V.S.W.R:

≤ 1.30

Model:

PS-825-50-8MNI

Temperature:

-25℃- +75℃

Frequency:

800-2500MHz

Connector:

N-Female , 50 Ω

Power:

50W Average

Annotation:

Indoor/Outdoor Use

Insertion Loss:

≤ 1.2/1.5 dB

Waterproof:

RoHS Compliant

Item Name:

12 Way MicroStrip Type

V.S.W.R:

≤ 1.30

Model:

PS-825-50-12MNI

Temperature:

-25℃- +75℃

Frequency:

800-2500MHz

Connector:

N-Female , 50 Ω

Power:

50W Average

Annotation:

Indoor/Outdoor Use

Insertion Loss:

≤ 1.2/1.5 dB

Waterproof:

RoHS Compliant

Item Name:

2 Way MicroStrip Type

V.S.W.R:

≤ 1.20

Model:

PS-825-50-2MSR

Temperature:

-25℃- +75℃

Frequency:

800-2500MHz

Connector:

SMA-Female , 50 Ω

Power:

50W Average

Annotation:

Indoor Use

PIM:

-130dBc , 2X43dBm

Waterproof:

RoHS Compliant

Item Name:

3 Way MicroStrip Type

V.S.W.R:

≤ 1.25

Model:

PS-825-50-3MSR

Temperature:

-25℃- +75℃

Frequency:

800-2500MHz

Connector:

SMA-Female , 50 Ω

Power:

50W Average

Annotation:

Indoor Use

PIM:

-130dBc , 2X43dBm

Waterproof:

RoHS Compliant

Item Name:

4 Way MicroStrip Type

V.S.W.R:

≤ 1.30

Model:

PS-825-50-4MSR

Temperature:

-25℃- +75℃

Frequency:

800-2500MHz

Connector:

SMA-Female , 50 Ω

Power:

50W Average

Annotation:

Indoor Use

PIM:

-130dBc , 2X43dBm

Waterproof:

RoHS Compliant

Item Name:

6 Way MicroStrip Type

V.S.W.R:

≤ 1.60

Model:

PS-825-10-6MSK

Temperature:

-55℃- +85℃

Frequency:

800-2500MHz

Connector:

SMA-Female , 50 Ω

Power:

10W Average

Annotation:

Indoor Use

Insertion Loss:

≤ 1.9 dB

Waterproof:

IP65

Item Name:

8 Way MicroStrip Type

V.S.W.R:

≤ 1.47

Model:

PS-825-10-8MSK

Temperature:

-55℃- +85℃

Frequency:

800-2500MHz

Connector:

SMA-Female , 50 Ω

Power:

10W Average

Annotation:

Indoor Use

Insertion Loss:

≤ 1.2 dB

Waterproof:

Non

555-2700MHz DC-Block Low Power Splitter/Divider

Item Name:

2 Way MicroStrip Type

V.S.W.R:

≤ 1.20

Model:

PS-527-50-2MNH

Temperature:

-25℃- +75℃

Frequency:

555-2700MHz

Connector:

N-Female , 50 Ω

Power:

50W/100W Average

Annotation:

Indoor/Outdoor Use

PIM:

-150dBc , 2X43dBm

Waterproof:

IP65 , RoHS

Item Name:

3 Way MicroStrip Type

V.S.W.R:

≤ 1.25

Model:

PS-527-50-3MNH

Temperature:

-25℃- +75℃

Frequency:

555-2700MHz

Connector:

N-Female , 50 Ω

Power:

50W Average

Annotation:

Indoor/Outdoor Use

PIM:

-150dBc , 2X43dBm

Waterproof:

IP65 , RoHS

Item Name:

4 Way MicroStrip Type

V.S.W.R:

≤ 1.30

Model:

PS-527-50-4MNH

Temperature:

-25℃- +75℃

Frequency:

555-2700MHz

Connector:

N-Female , 50 Ω

Power:

50W/100W Average

Annotation:

Indoor/Outdoor Use

PIM:

-150dBc , 2X43dBm

Waterproof:

IP65 , RoHS

Item Name:

2 Way MicroStrip Type

V.S.W.R:

≤ 1.25

Model:

PS-527-50-2M43DI

Temperature:

-25℃- +75℃

Frequency:

555-2700MHz

Connector:

4.3/10-/F,50 Ω

Power:

50W Average

Annotation:

Indoor/Outdoor Use

PIM:

-153dBc , 2X43dBm

Waterproof:

IP65 , RoHS

Item Name:

3 Way MicroStrip Type

V.S.W.R:

≤ 1.25

Model:

PS-527-50-3M43DI

Temperature:

-25℃- +75℃

Frequency:

555-2700MHz

Connector:

4.3/10-/F,50 Ω

Power:

50W Average

Annotation:

Indoor/Outdoor Use

PIM:

-153dBc , 2X43dBm

Waterproof:

IP65 , RoHS

Item Name:

4 Way MicroStrip Type

V.S.W.R:

≤ 1.30

Model:

PS-527-50-4M43DI

Temperature:

-25℃- +75℃

Frequency:

555-2700MHz

Connector:

4.3/10-/F,50 Ω

Power:

50W Average

Annotation:

Indoor/Outdoor Use

PIM:

-153dBc , 2X43dBm

Waterproof:

IP65 , RoHS

698-2700MHz Low Power Splitter/Divider

Item Name:

2 Way MicroStrip Type

V.S.W.R:

≤ 1.20

Model:

PS-727-50-2MNH

Temperature:

-25℃- +75℃

Frequency:

698-2700MHz

Connector:

N-Female , 50 Ω

Power:

50W/100W Average

Annotation:

Indoor/Outdoor Use

PIM:

-150dBc , 2X43dBm

Waterproof:

IP65 , RoHS

Item Name:

3 Way MicroStrip Type

V.S.W.R:

≤ 1.25

Model:

PS-727-50-3MNH

Temperature:

-25℃- +75℃

Frequency:

698-2700MHz

Connector:

N-Female , 50 Ω

Power:

50W Average

Annotation:

Indoor/Outdoor Use

PIM:

-150dBc , 2X43dBm

Waterproof:

IP65 , RoHS

Item Name:

4 Way MicroStrip Type

V.S.W.R:

≤ 1.30

Model:

PS-727-50-4MNH

Temperature:

-25℃- +75℃

Frequency:

698-2700MHz

Connector:

N-Female , 50 Ω

Power:

50W/100W Average

Annotation:

Indoor/Outdoor Use

PIM:

-150dBc , 2X43dBm

Waterproof:

IP65 , RoHS

Item Name:

2 Way MicroStrip Type

V.S.W.R:

≤ 1.20

Model:

PS-727-50-2MNI

Temperature:

-25℃- +75℃

Frequency:

698-2700MHz

Connector:

N-Female , 50 Ω

Power:

50W/100W Average

Annotation:

Indoor/Outdoor Use

PIM:

-130dBc , 2X43dBm

Waterproof:

IP65 , RoHS

Item Name:

3 Way MicroStrip Type

V.S.W.R:

≤ 1.25

Model:

PS-727-50-3MNI

Temperature:

-25℃- +75℃

Frequency:

698-2700MHz

Connector:

N-Female , 50 Ω

Power:

50W Average

Annotation:

Indoor/Outdoor Use

PIM:

-130dBc , 2X43dBm

Waterproof:

IP65 , RoHS

Item Name:

4 Way MicroStrip Type

V.S.W.R:

≤ 1.30

Model:

PS-727-50-4MNI

Temperature:

-25℃- +75℃

Frequency:

698-2700MHz

Connector:

N-Female , 50 Ω

Power:

50W/100W Average

Annotation:

Indoor/Outdoor Use

PIM:

-130dBc , 2X43dBm

Waterproof:

IP65 , RoHS

Item Name:

2 Way MicroStrip Type

V.S.W.R:

≤ 1.25

Model:

PS-727-50-2M43DI

Temperature:

-25℃- +75℃

Frequency:

698-2700MHz

Connector:

4.3/10-/F,50 Ω

Power:

50W/100W Average

Annotation:

Indoor/Outdoor Use

PIM:

-153dBc , 2X43dBm

Waterproof:

IP65 , RoHS

Item Name:

3 Way MicroStrip Type

V.S.W.R:

≤ 1.25

Model:

PS-727-50-3M43DI

Temperature:

-25℃- +75℃

Frequency:

698-2700MHz

Connector:

4.3/10-/F,50 Ω

Power:

50W Average

Annotation:

Indoor/Outdoor Use

PIM:

-153dBc , 2X43dBm

Waterproof:

IP65 , RoHS

Item Name:

4 Way MicroStrip Type

V.S.W.R:

≤ 1.30

Model:

PS-727-50-4M43DI

Temperature:

-25℃- +75℃

Frequency:

698-2700MHz

Connector:

4.3/10-/F,50 Ω

Power:

50W/100W Average

Annotation:

Indoor/Outdoor Use

PIM:

-153dBc , 2X43dBm

Waterproof:

IP65 , RoHS

Item Name:

6 Way MicroStrip Type

V.S.W.R:

≤ 1.30

Model:

PS-727-50-6M43DI

Temperature:

-25℃- +75℃

Frequency:

698-2700MHz

Connector:

4.3/10-/F,50 Ω

Power:

50W/100W Average

Annotation:

Indoor/Outdoor Use

PIM:

-150dBc , 2X43dBm

Waterproof:

IP65 , RoHS

Item Name:

8 Way MicroStrip Type

V.S.W.R:

≤ 1.30

Model:

PS-727-50-8MNI

Temperature:

-25℃- +75℃

Frequency:

698-2700MHz

Connector:

N-Female , 50 Ω

Power:

50W Average

Annotation:

Indoor/Outdoor Use

Insertion Loss:

≤ 1.2/1.5 dB

Waterproof:

RoHS Compliant

Item Name:

12 Way MicroStrip Type

V.S.W.R:

≤ 1.30/1.50

Model:

PS-727-50-12MNI

Temperature:

-25℃- +75℃

Frequency:

698-2700MHz

Connector:

N-Female , 50 Ω

Power:

50W Average

Annotation:

Indoor/Outdoor Use

Insertion Loss:

≤ 1.2/1.5 dB

Waterproof:

RoHS Compliant

Item Name:

2 Way MicroStrip Type

V.S.W.R:

≤ 1.20

Model:

PS-727-50-2MSR

Temperature:

-25℃- +75℃

Frequency:

698-2700MHz

Connector:

SMA-Female , 50 Ω

Power:

50W Average

Annotation:

Indoor Use

PIM:

-130dBc , 2X43dBm

Waterproof:

RoHS Compliant

Item Name:

3 Way MicroStrip Type

V.S.W.R:

≤ 1.25

Model:

PS-727-50-3MSR

Temperature:

-25℃- +75℃

Frequency:

698-2700MHz

Connector:

SMA-Female , 50 Ω

Power:

50W Average

Annotation:

Indoor Use

PIM:

-130dBc , 2X43dBm

Waterproof:

RoHS Compliant

Item Name:

4 Way MicroStrip Type

V.S.W.R:

≤ 1.30

Model:

PS-727-50-4MSR

Temperature:

-25℃- +75℃

Frequency:

698-2700MHz

Connector:

SMA-Female , 50 Ω

Power:

50W Average

Annotation:

Indoor Use

PIM:

-130dBc , 2X43dBm

Waterproof:

RoHS Compliant

698-2700MHz DC-Block Low Power Splitter/Divider

Item Name:

2 Way MicroStrip Type

Insertion Loss:

≤ 0.4 dB

Model:

PSDB-727-50-2MNF

V.S.W.R:

≤ 1.25

Frequency:

698-2700MHz

Temperature:

-25℃- +85℃

Power:

50W Average

Connector:

N-Female , 50 Ω

Phase Balance

3°

Annotation:

Indoor Use

DC-Stop Port

Output 1 or Output 2

Waterproof:

IP65 , RoHS

694-3800MHz Low Power Splitter/Divider

Item Name:

2 Way MicroStrip Type

V.S.W.R:

≤ 1.25

Model:

PS-738-50-2MNI

Temperature:

-25℃- +85℃

Frequency:

694-3800MHz

Connector:

N-Female , 50 Ω

Power:

50W Average

Annotation:

Indoor/Outdoor Use

PIM:

-150dBc , 2X43dBm

Waterproof:

IP65 , RoHS

Item Name:

4 Way MicroStrip Type

V.S.W.R:

≤ 1.30

Model:

PS-738-50-4MNI

Temperature:

-25℃- 85℃

Frequency:

694-3800MHz

Connector:

N-Female , 50 Ω

Power:

50W Average

Annotation:

Indoor/Outdoor Use

PIM:

-150dBc , 2X43dBm

Waterproof:

IP65 , RoHS

Item Name:

2 Way MicroStrip Type

V.S.W.R:

≤ 1.25

Model:

PS-738-50-2M43MDI

Temperature:

-25℃- +85℃

Frequency:

694-3800MHz

Connector:

4.3/10-Female , 50 Ω

Power:

50W Average

Annotation:

Indoor/Outdoor Use

PIM:

-150dBc , 2X43dBm

Waterproof:

IP65 , RoHS

Item Name:

4 Way MicroStrip Type

V.S.W.R:

≤ 1.30

Model:

PS-738-50-4M43MDI

Temperature:

-25℃- 85℃

Frequency:

694-3800MHz

Connector:

4.3/10-Female , 50 Ω

Power:

50W Average

Annotation:

Indoor/Outdoor Use

PIM:

-150dBc , 2X43dBm

Waterproof:

IP65 , RoHS

3000-4000MHz Micro Power Splitter/Divider

Item Name:

2 Way MicroStrip Type

V.S.W.R:

≤ 1.20

Model:

PS-3040-1-2MNI

Temperature:

-25℃- +75℃

Frequency:

3000-4000MHz

Connector:

SMA-Female ,50 Ω

Power:

1W Average

Annotation:

Indoor Use

PIM:

None

Waterproof:

IP65 , RoHS

Typical PIM < -153dBc@2X43dBm
