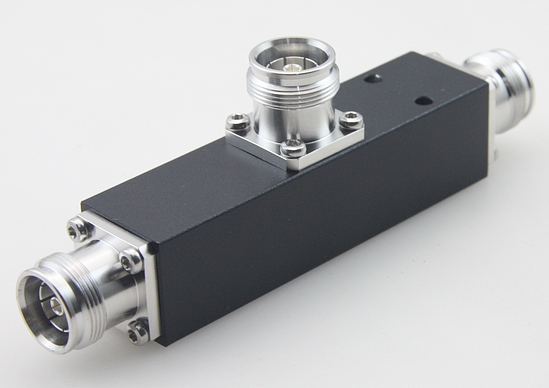

GELVO TECHNOLOGY Power Tapper

136-2700MHz Power Tappers

Item Name:

5dB Power Tapper

Output Split:

5.0dB

Model:

PT-127-200-5CNI

Insertion Loss:

1.80dB

Frequency:

136~960/1710-2700MHz

Impedance:

50Ω

Coupling:

5±1.2dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-161dBc@2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25/1.30

Waterproof:

IP65,RoHS

Item Name:

6dB Power Tapper

Output Split:

6.0dB

Model:

PT-127-200-6CNI

Insertion Loss:

1.40dB

Frequency:

136~960/1710-2700MHz

Impedance:

50Ω

Coupling:

6±1.2dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-161dBc@2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25/1.30

Waterproof:

IP65,RoHS

Item Name:

7dB Power Tapper

Output Split:

7.0dB

Model:

PT-127-200-7CNI

Insertion Loss:

1.10dB

Frequency:

136~960/1710-2700MHz

Impedance:

50Ω

Coupling:

7±1.0dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-161dBc@2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25/1.30

Waterproof:

IP65,RoHS

Item Name:

8dB Power Tapper

Output Split:

8.0dB

Model:

PT-127-200-8CNI

Insertion Loss:

1.00dB

Frequency:

136~960/1710-2700MHz

Impedance:

50Ω

Coupling:

8±1.0dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-161dBc@2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25/1.30

Waterproof:

IP65,RoHS

Item Name:

10dB Power Tapper

Output Split:

10.0dB

Model:

PT-127-200-10CNI

Insertion Loss:

0.50dB

Frequency:

136~960/1710-2700MHz

Impedance:

50Ω

Coupling:

10±1.0dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-161dBc@2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25/1.25

Waterproof:

IP65,RoHS

Item Name:

15dB Power Tapper

Output Split:

15.0dB

Model:

PT-127-200-15CNI

Insertion Loss:

0.20dB

Frequency:

136~960/1710-2700MHz

Impedance:

50Ω

Coupling:

15±1.0dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-161dBc@2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25/1.25

Waterproof:

IP65,RoHS

Item Name:

20dB Power Tapper

Output Split:

20.0dB

Model:

PT-127-200-20CNI

Insertion Loss:

0.20dB

Frequency:

136~960/1710-2700MHz

Impedance:

50Ω

Coupling:

20±1.2dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-161dBc@2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25/1.25

Waterproof:

IP65,RoHS

Item Name:

30dB Power Tapper

Output Split:

30.0dB

Model:

PT-127-200-30CNI

Insertion Loss:

0.20dB

Frequency:

136~960/1710-2700MHz

Impedance:

50Ω

Coupling:

30±1.5dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-161dBc@2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25/1.25

Waterproof:

IP65,RoHS

Item Name:

5dB Power Tapper

Output Split:

5.0dB

Model:

PT-127-200-5C43DI

Insertion Loss:

1.80dB

Frequency:

136~960/1710-2700MHz

Impedance:

50Ω

Coupling:

5±1.2dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

4.3/10-Female

PIM:(dBc)

-161dBc@2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25/1.30

Waterproof:

IP65,RoHS

Item Name:

6dB Power Tapper

Output Split:

6.0dB

Model:

PT-127-200-6C43DI

Insertion Loss:

1.40dB

Frequency:

136~960/1710-2700MHz

Impedance:

50Ω

Coupling:

6±1.2dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

4.3/10-Female

PIM:(dBc)

-161dBc@2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25/1.30

Waterproof:

IP65,RoHS

Item Name:

7dB Power Tapper

Output Split:

7.0dB

Model:

PT-127-200-7C43DI

Insertion Loss:

1.10dB

Frequency:

136~960/1710-2700MHz

Impedance:

50Ω

Coupling:

7±1.0dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

4.3/10-Female

PIM:(dBc)

-161dBc@2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25/1.30

Waterproof:

IP65,RoHS

Item Name:

8dB Power Tapper

Output Split:

8.0dB

Model:

PT-127-200-8C43DI

Insertion Loss:

1.00dB

Frequency:

136~960/1710-2700MHz

Impedance:

50Ω

Coupling:

8±1.0dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

4.3/10-Female

PIM:(dBc)

-161dBc@2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25/1.30

Waterproof:

IP65,RoHS

Item Name:

10dB Power Tapper

Output Split:

10.0dB

Model:

PT-127-200-10C43DI

Insertion Loss:

0.50dB

Frequency:

136~960/1710-2700MHz

Impedance:

50Ω

Coupling:

10±1.2dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

4.3/10-Female

PIM:(dBc)

-161dBc@2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25/1.30

Waterproof:

IP65,RoHS

Item Name:

15dB Power Tapper

Output Split:

15.0dB

Model:

PT-127-200-15C43DI

Insertion Loss:

0.20dB

Frequency:

136~960/1710-2700MHz

Impedance:

50Ω

Coupling:

15±1.2dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

4.3/10-Female

PIM:(dBc)

-161dBc@2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25/1.30

Waterproof:

IP65,RoHS

Item Name:

20dB Power Tapper

Output Split:

20.0dB

Model:

PT-127-200-20C43DI

Insertion Loss:

0.20dB

Frequency:

136~960/1710-2700MHz

Impedance:

50Ω

Coupling:

20±1.2dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

4.3/10-Female

PIM:(dBc)

-161dBc@2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25/1.30

Waterproof:

IP65,RoHS

Item Name:

30dB Power Tapper

Output Split:

30.0dB

Model:

PT-127-200-30C43DI

Insertion Loss:

0.20dB

Frequency:

136~960/1710-2700MHz

Impedance:

50Ω

Coupling:

30±1.5dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

4.3/10-Female

PIM:(dBc)

-161dBc@2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25/1.30

Waterproof:

IP65,RoHS

138-960MHz(340-960MHz) Power Tappers

Item Name:

5dB Power Tapper

Output Split:

5.0dB

Model:

PT-13.96-500-5CNI

Insertion Loss:

0.10dB

Frequency:

138~960MHz

Impedance:

50Ω

Coupling:

5±0.8dB

Temperature:

-35℃- +75℃

Power:

500W Average

Connector:

N-Female

PIM:(dBc)

-161dBc@2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.40

Waterproof:

IP65,RoHS

Item Name:

6dB Power Tapper

Output Split:

6.0dB

Model:

PT-13.96-500-6CNI

Insertion Loss:

0.10dB

Frequency:

138~960MHz

Impedance:

50Ω

Coupling:

6±0.8dB

Temperature:

-35℃- +75℃

Power:

500W Average

Connector:

N-Female

PIM:(dBc)

-161dBc@2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65,RoHS

Item Name:

7dB Power Tapper

Output Split:

7.0dB

Model:

PT-13.96-500-8CNI

Insertion Loss:

0.10dB

Frequency:

138~960MHz

Impedance:

50Ω

Coupling:

8±1.0dB

Temperature:

-35℃- +75℃

Power:

500W Average

Connector:

N-Female

PIM:(dBc)

-161dBc@2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.250

Waterproof:

IP65,RoHS

Item Name:

10dB Power Tapper

Output Split:

10.dB

Model:

PT-13.96-500-10CNI

Insertion Loss:

0.10dB

Frequency:

138~960MHz

Impedance:

50Ω

Coupling:

10±1.0dB

Temperature:

-35℃- +75℃

Power:

500W Average

Connector:

N-Female

PIM:(dBc)

-161dBc@2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.20

Waterproof:

IP65,RoHS

Item Name:

13dB Power Tapper

Output Split:

13.0dB

Model:

PT-13.96-500-13CNI

Insertion Loss:

0.10dB

Frequency:

138~960MHz

Impedance:

50Ω

Coupling:

13±1.0dB

Temperature:

-35℃- +75℃

Power:

500W Average

Connector:

N-Female

PIM:(dBc)

-161dBc@2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.20

Waterproof:

IP65,RoHS

Item Name:

15dB Power Tapper

Output Split:

15.0dB

Model:

PT-13.96-500-15CNI

Insertion Loss:

0.10dB

Frequency:

138~960MHz

Impedance:

50Ω

Coupling:

15±1.0dB

Temperature:

-35℃- +75℃

Power:

500W Average

Connector:

N-Female

PIM:(dBc)

-161dBc@2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.15

Waterproof:

IP65,RoHS

Item Name:

20dB Power Tapper

Output Split:

20.0dB

Model:

PT-13.96-500-20CNI

Insertion Loss:

0.10dB

Frequency:

138~960MHz

Impedance:

50Ω

Coupling:

20±1.0dB

Temperature:

-35℃- +75℃

Power:

500W Average

Connector:

N-Female

PIM:(dBc)

-161dBc@2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.15

Waterproof:

IP65,RoHS

Item Name:

5dB Power Tapper

Output Split:

5.0dB

Model:

PT-13.96-500-5C43DI

Insertion Loss:

0.10 dB

Frequency:

138-960MHz

Impedance:

50 Ω

Coupling:

5±0.8 dB

Temperature:

-35℃- +75℃

Power:

500W Average

Connector:

4.3-10/Female

PIM:(dBc)

-161dBc@2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.40

Waterproof:

IP65,RoHS

Item Name:

7dB Power Tapper

Output Split:

7.0dB

Model:

PT-13.96-500-7C43DI

Insertion Loss:

0.10 dB

Frequency:

138-960MHz

Impedance:

50 Ω

Coupling:

7±0.8 dB

Temperature:

-35℃- +75℃

Power:

500W Average

Connector:

4.3-10/Female

PIM:(dBc)

-161dBc@2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65,RoHS

Item Name:

10dB Power Tapper

Output Split:

10.0dB

Model:

PT-13.96-500-10C43DI

Insertion Loss:

0.10 dB

Frequency:

138-960MHz

Impedance:

50 Ω

Coupling:

10±0.8 dB

Temperature:

-35℃- +75℃

Power:

500W Average

Connector:

4.3-10/Female

PIM:(dBc)

-161dBc@2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25

Waterproof:

IP65,RoHS

Item Name:

13dB Power Tapper

Output Split:

13.0dB

Model:

PT-13.96-500-13C43DI

Insertion Loss:

0.10 dB

Frequency:

138-960MHz

Impedance:

50 Ω

Coupling:

13±0.8 dB

Temperature:

-35℃- +75℃

Power:

500W Average

Connector:

4.3-10/Female

PIM:(dBc)

-161dBc@2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.20

Waterproof:

IP65,RoHS

Item Name:

15dB Power Tapper

Output Split:

15.0dB

Model:

PT-13.96-500-15C43DI

Insertion Loss:

0.10 dB

Frequency:

138-960MHz

Impedance:

50 Ω

Coupling:

15±0.8 dB

Temperature:

-35℃- +75℃

Power:

500W Average

Connector:

4.3-10/Female

PIM:(dBc)

-161dBc@2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.15

Waterproof:

IP65,RoHS

Item Name:

20dB Power Tapper

Output Split:

20.0dB

Model:

PT-13.96-500-20C43DI

Insertion Loss:

0.10 dB

Frequency:

138-960MHz

Impedance:

50 Ω

Coupling:

20±0.8 dB

Temperature:

-35℃- +75℃

Power:

500W Average

Connector:

4.3-10/Female

PIM:(dBc)

-161dBc@2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.15

Waterproof:

IP65,RoHS

800-2500MHz Power Tappers

Item Name:

DC Pass Power Tapper

Insertion Loss:

4 dB

Model:

PTDP-825-200-3CNI

DC Pass

All Port

Frequency:

800-2500MHz

Impedance:

50 Ω

Coupling:

3±0.8 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.35

Waterproof:

IP65 , RoHS

Item Name:

DC Pass Power Tapper

Insertion Loss:

2.3 dB

Model:

PTDP-825-200-5CNI

DC Pass

All Port

Frequency:

800-2500MHz

Impedance:

50 Ω

Coupling:

4.7±0.8 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.35

Waterproof:

IP65 , RoHS

Item Name:

DC Pass Power Tapper

Insertion Loss:

1.65 dB

Model:

PTDP-825-200-6CNI

DC Pass

All Port

Frequency:

800-2500MHz

Impedance:

50 Ω

Coupling:

6±1.0 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.35

Waterproof:

IP65 , RoHS

Item Name:

DC Pass Power Tapper

Insertion Loss:

1 dB

Model:

PTDP-825-200-8CNI

DC Pass

All Port

Frequency:

800-2500MHz

Impedance:

50 Ω

Coupling:

8±1.0 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.35

Waterproof:

IP65 , RoHS

Item Name:

DC Pass Power Tapper

Insertion Loss:

0.6 dB

Model:

PTDP-825-200-10CNI

DC Pass

All Port

Frequency:

800-2500MHz

Impedance:

50 Ω

Coupling:

10±1.0 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.35

Waterproof:

IP65 , RoHS

1700-2500MHz Power Tappers

Item Name:

6dB Power Tapper

Mailine Loss:

1.26±0.4dB

Model:

PT-1725-200-6CNI

Insertion Loss:

0.10 dB

Frequency:

1700-2500MHz

Impedance:

50 Ω

Coupling:

6±0.80 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.15

Waterproof:

IP65 , RoHS

Item Name:

10dB Power Tapper

Mailine Loss:

0.46±0.3dB

Model:

PT-1725-200-10CNI

Insertion Loss:

0.10 dB

Frequency:

1700-2500MHz

Impedance:

50 Ω

Coupling:

10±1.00 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.15

Waterproof:

IP65 , RoHS

Item Name:

15dB ower Tapper

Mailine Loss:

0.20±0.2dB

Model:

PT-1725-200-15CNI

Insertion Loss:

0.10 dB

Frequency:

1700-2500MHz

Impedance:

50 Ω

Coupling:

15±1.20 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.15

Waterproof:

IP65 , RoHS

Item Name:

20dB Power Tapper

Mailine Loss:

0.10±0.1dB

Model:

PT-1725-200-20CNI

Insertion Loss:

0.10 dB

Frequency:

1700-2500MHz

Impedance:

50 Ω

Coupling:

20±1.50 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.15

Waterproof:

IP65 , RoHS

340-2700MHz(350-2700MHz) Power Tappers

Item Name:

5dB Power Tapper

Return Loss:

19 (Input)

Model:

PT-327-200-5CNI

Insertion Loss:

1.7 dB

Frequency:

340-2700MHz

Impedance:

50 Ω

Coupling:

5±0.8 dB

Temperature:

-40℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25

Waterproof:

IP65 , RoHS

Item Name:

6dB Power Tapper

Return Loss:

19 (Input)

Model:

PT-327-200-6CNI

Insertion Loss:

1.5 dB

Frequency:

340-2700MHz

Impedance:

50 Ω

Coupling:

6±1.0 dB

Temperature:

-40℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25

Waterproof:

IP65 , RoHS

Item Name:

8dB Power Tapper

Return Loss:

19 (Input)

Model:

PT-327-200-8CNI

Insertion Loss:

1.2 dB

Frequency:

340-2700MHz

Impedance:

50 Ω

Coupling:

8±1.0 dB

Temperature:

-40℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25

Waterproof:

IP65 , RoHS

Item Name:

10dB Power Tapper

Return Loss:

20.8 (Input)

Model:

PT-327-200-10CNI

Insertion Loss:

0.8 dB

Frequency:

340-2700MHz

Impedance:

50 Ω

Coupling:

10±1.0 dB

Temperature:

-40℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25

Waterproof:

IP65 , RoHS

Item Name:

15dB Power Tapper

Return Loss:

20.8 (Input)

Model:

PT-327-200-15CNI

Insertion Loss:

0.6 dB

Frequency:

340-2700MHz

Impedance:

50 Ω

Coupling:

15±1.0 dB

Temperature:

-40℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25

Waterproof:

IP65 , RoHS

Item Name:

20dB Power Tapper

Return Loss:

20.8 (Input)

Model:

PT-327-200-20CNI

Insertion Loss:

0.5 dB

Frequency:

340-2700MHz

Impedance:

50 Ω

Coupling:

20±1.2 dB

Temperature:

-40℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25

Waterproof:

IP65 , RoHS

Item Name:

30dB Power Tapper

Return Loss:

20.8 (Input)

Model:

PT-327-200-30CNI

Insertion Loss:

0.3 dB

Frequency:

340-2700MHz

Impedance:

50 Ω

Coupling:

30±1.5 dB

Temperature:

-40℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25

Waterproof:

IP65 , RoHS

Item Name:

5dB Power Tapper

Return Loss:

19 (Input)

Model:

PT-327-200-5C43DI

Insertion Loss:

1.7 dB

Frequency:

340-2700MHz

Impedance:

50 Ω

Coupling:

5±0.8 dB

Temperature:

-40℃- +75℃

Power:

200W Average

Connector:

4.3/10-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25

Waterproof:

IP65 , RoHS

Item Name:

6dB Power Tapper

Return Loss:

19 (Input)

Model:

PT-327-200-6C43DI

Insertion Loss:

1.5 dB

Frequency:

340-2700MHz

Impedance:

50 Ω

Coupling:

6±0.8 dB

Temperature:

-40℃- +75℃

Power:

200W Average

Connector:

4.3/10-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25

Waterproof:

IP65 , RoHS

Item Name:

8dB Power Tapper

Return Loss:

19 (Input)

Model:

PT-327-200-8C43DI

Insertion Loss:

1.2 dB

Frequency:

340-2700MHz

Impedance:

50 Ω

Coupling:

8±0.8 dB

Temperature:

-40℃- +75℃

Power:

200W Average

Connector:

4.3/10-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25

Waterproof:

IP65 , RoHS

Item Name:

10dB Power Tapper

Return Loss:

20.8 (Input)

Model:

PT-327-200-10C43DI

Insertion Loss:

0.8 dB

Frequency:

340-2700MHz

Impedance:

50 Ω

Coupling:

10±1.0 dB

Temperature:

-40℃- +75℃

Power:

200W Average

Connector:

4.3/10-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25

Waterproof:

IP65 , RoHS

Item Name:

15dB Power Tapper

Return Loss:

20.8 (Input)

Model:

PT-327-200-15C43DI

Insertion Loss:

0.5 dB

Frequency:

340-2700MHz

Impedance:

50 Ω

Coupling:

15±1.2 dB

Temperature:

-40℃- +75℃

Power:

200W Average

Connector:

4.3/10-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25

Waterproof:

IP65 , RoHS

Item Name:

20dB Power Tapper

Return Loss:

20.8 (Input)

Model:

PT-327-200-20C43DI

Insertion Loss:

0.3 dB

Frequency:

340-2700MHz

Impedance:

50 Ω

Coupling:

20±1.5 dB

Temperature:

-40℃- +75℃

Power:

200W Average

Connector:

4.3/10-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25

Waterproof:

IP65 , RoHS

Item Name:

30dB Power Tapper

Return Loss:

20.8 (Input)

Model:

PT-327-200-30C43DI

Insertion Loss:

0.2 dB

Frequency:

340-2700MHz

Impedance:

50 Ω

Coupling:

30±1.5 dB

Temperature:

-40℃- +75℃

Power:

200W Average

Connector:

4.3/10-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.25

Waterproof:

IP65 , RoHS

560-2700MHz (578-2700MHz) Power Tappers

Item Name:

5dB Power Tapper

Mailine Loss:

1.26±0.4 dB

Model:

PT-527-200-5CNI

Insertion Loss:

0.10 dB

Frequency:

560-2700MHz

Impedance:

50 Ω

Coupling:

5±0.8 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.35

Waterproof:

IP65 , RoHS

Item Name:

6dB Power Tapper

Mailine Loss:

1.26±0.4 dB

Model:

PT-527-200-6CNI

Insertion Loss:

0.10 dB

Frequency:

560-2700MHz

Impedance:

50 Ω

Coupling:

6±0.8 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.35

Waterproof:

IP65 , RoHS

Item Name:

6dB Power Tapper

Mailine Loss:

1.26±0.4 dB

Model:

PT-527-200-7CNI

Insertion Loss:

0.10 dB

Frequency:

560-2700MHz

Impedance:

50 Ω

Coupling:

7±0.8 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.35

Waterproof:

IP65 , RoHS

Item Name:

6dB Power Tapper

Mailine Loss:

1.26±0.4 dB

Model:

PT-527-200-8CNI

Insertion Loss:

0.10 dB

Frequency:

560-2700MHz

Impedance:

50 Ω

Coupling:

8±0.8 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.35

Waterproof:

IP65 , RoHS

Item Name:

6dB Power Tapper

Mailine Loss:

1.26±0.4 dB

Model:

PT-527-200-10CNI

Insertion Loss:

0.10 dB

Frequency:

560-2700MHz

Impedance:

50 Ω

Coupling:

10±1.0 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.35

Waterproof:

IP65 , RoHS

Item Name:

6dB Power Tapper

Mailine Loss:

1.26±0.4 dB

Model:

PT-527-200-15CNI

Insertion Loss:

0.10 dB

Frequency:

560-2700MHz

Impedance:

50 Ω

Coupling:

15±1.0 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.35

Waterproof:

IP65 , RoHS

Item Name:

6dB Power Tapper

Mailine Loss:

1.26±0.4 dB

Model:

PT-527-200-20CNI

Insertion Loss:

0.10 dB

Frequency:

560-2700MHz

Impedance:

50 Ω

Coupling:

20±1.20 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.35

Waterproof:

IP65 , RoHS

Item Name:

6dB Power Tapper

Mailine Loss:

1.26±0.4 dB

Model:

PT-527-200-30CNI

Insertion Loss:

0.10 dB

Frequency:

560-2700MHz

Impedance:

50 Ω

Coupling:

30±1.50 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.35

Waterproof:

IP65 , RoHS

Item Name:

6dB Power Tapper

Mailine Loss:

1.26±0.4 dB

Model:

PT-527-200-40CNI

Insertion Loss:

0.10 dB

Frequency:

560-2700MHz

Impedance:

50 Ω

Coupling:

40±1.50 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.35

Waterproof:

IP65 , RoHS

698-2700MHz Power Tapper/694-2700MHz Power Tappers

Item Name:

5dB Power Tapper

Mailine Loss:

1.26±0.4 dB

Model:

PT-727-200-5CNI

Insertion Loss:

0.10 dB

Frequency:

69-2700MHz

Impedance:

50 Ω

Coupling:

5±0.8 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.35

Waterproof:

IP65 , RoHS

Item Name:

6dB Power Tapper

Mailine Loss:

1.26±0.4 dB

Model:

PT-727-200-6CNI

Insertion Loss:

0.10 dB

Frequency:

698-2700MHz

Impedance:

50 Ω

Coupling:

6±0.8 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.35

Waterproof:

IP65 , RoHS

Item Name:

7dB Power Tapper

Mailine Loss:

1.26±0.4 dB

Model:

PT-727-200-7CNI

Insertion Loss:

0.10 dB

Frequency:

698-2700MHz

Impedance:

50 Ω

Coupling:

7±0.8 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.35

Waterproof:

IP65 , RoHS

Item Name:

8dB Power Tapper

Mailine Loss:

1.26±0.4 dB

Model:

PT-727-200-8CNI

Insertion Loss:

0.10 dB

Frequency:

698-2700MHz

Impedance:

50 Ω

Coupling:

8±0.8 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.35

Waterproof:

IP65 , RoHS

Item Name:

10dB Power Tapper

Mailine Loss:

0.46±0.3 dB

Model:

PT-727-200-10CNI

Insertion Loss:

0.10 dB

Frequency:

698-2700MHz

Impedance:

50 Ω

Coupling:

10±1.0 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.35

Environment:

IP65 , RoHS

Item Name:

13dB Power Tapper

Mailine Loss:

1.26±0.4 dB

Model:

PT-727-200-13CNI

Insertion Loss:

0.10 dB

Frequency:

698-2700MHz

Impedance:

50 Ω

Coupling:

13±1.0 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.35

Waterproof:

IP65 , RoHS

Item Name:

15dB Power Tapper

Mailine Loss:

0.20±0.2 dB

Model:

PT-727-200-15CNI

Insertion Loss:

0.10 dB

Frequency:

698-2700MHz

Impedance:

50 Ω

Coupling:

15±1.20 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.35

Waterproof:

IP65 , RoHS

Item Name:

20dB Power Tapper

Mailine Loss:

0.10±0.1dB

Model:

PT-727-200-20CNI

Insertion Loss:

0.10 dB

Frequency:

698-2700MHz

Impedance:

50 Ω

Coupling:

20±1.50 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.15

Waterproof:

IP65 , RoHS

Item Name:

30dB Power Tapper

Mailine Loss:

0.10±0.1dB

Model:

PT-727-200-30CNI

Insertion Loss:

0.10 dB

Frequency:

698-2700MHz

Impedance:

50 Ω

Coupling:

30±1.50 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.15

Waterproof:

IP65 , RoHS

Item Name:

40dB Power Tapper

Mailine Loss:

0.10±0.1dB

Model:

PT-727-200-40CNI

Insertion Loss:

0.10 dB

Frequency:

698-2700MHz

Impedance:

50 Ω

Coupling:

40±1.50 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.15

Waterproof:

IP65 , RoHS

Item Name:

5dB Power Tapper

Mailine Loss:

1.65±0.5dB

Model:

PT-727-200-5CDI

Insertion Loss:

0.10 dB

Frequency:

698-2700MHz

Impedance:

50 Ω

Coupling:

5±0.8 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

7/16(DIN)-Connector

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.15

Waterproof:

IP65 , RoHS

Item Name:

6dB Power Tapper

Mailine Loss:

1.26±0.4dB

Model:

PT-727-200-6CDI

Insertion Loss:

0.10 dB

Frequency:

698-2700MHz

Impedance:

50 Ω

Coupling:

6±0.8 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

7/16(DIN)-Connector

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.15

Waterproof:

IP65 , RoHS

Item Name:

7dB Power Tapper

Mailine Loss:

1.00±0.3dB

Model:

PT-727-200-7CDI

Insertion Loss:

0.10 dB

Frequency:

698-2700MHz

Impedance:

50 Ω

Coupling:

7±0.8 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

7/16(DIN)-Connector

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.15

Waterproof:

IP65 , RoHS

Item Name:

10dB Power Tapper

Mailine Loss:

0.46±0.3dB

Model:

PT-727-200-10CDI

Insertion Loss:

0.10 dB

Frequency:

698-2700MHz

Impedance:

50 Ω

Coupling:

10±1.0 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

7/16(DIN)-Connector

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.15

Waterproof:

IP65 , RoHS

Item Name:

15dB Power Tapper

Mailine Loss:

0.20±0.2dB

Model:

PT-727-200-15CDI

Insertion Loss:

0.10 dB

Frequency:

698-2700MHz

Impedance:

50 Ω

Coupling:

15±1.2 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

7/16(DIN)-Connector

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.15

Waterproof:

IP65 , RoHS

Item Name:

20dB Power Tapper

Mailine Loss:

0.10±0.1dB

Model:

PT-727-200-20CDI

Insertion Loss:

0.10 dB

Frequency:

698-2700MHz

Impedance:

50 Ω

Coupling:

20±1.50 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

7/16(DIN)-Connector

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.15

Waterproof:

IP65 , RoHS

Item Name:

30dB Power Tapper

Mailine Loss:

0.10±0.1dB

Model:

PT-727-200-30CDI

Insertion Loss:

0.10 dB

Frequency:

698-2700MHz

Impedance:

50 Ω

Coupling:

30±1.50 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

7/16(DIN)-Connector

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.15

Waterproof:

IP65 , RoHS

Item Name:

40dB Power Tapper

Mailine Loss:

0.10±0.1dB

Model:

PT-727-200-40CDI

Insertion Loss:

0.10 dB

Frequency:

698-2700MHz

Impedance:

50 Ω

Coupling:

40±1.50 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

7/16(DIN)-Connector

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.15

Waterproof:

IP65 , RoHS

698-2700MHz 7/16(DIN) + QMA Power Tapper

Item Name:

20dB Power Tapper

Mailine Loss:

0.10±0.1dB

Model:

PT-727-200-20CDQM

Insertion Loss:

0.10 dB

Frequency:

698-2700MHz

Impedance:

50 Ω

Coupling:

20±1.50 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

7/16(DIN)-Connector

PIM:(dBc)

-150dBc , 2X43dBm

Coupling Port:

QMA Female

V.S.W.R:

≤ 1.15

Waterproof:

RoHS Compliant

Item Name:

30dB Power Tapper

Mailine Loss:

0.10±0.1dB

Model:

PT-727-200-30CDQM

Insertion Loss:

0.10 dB

Frequency:

698-2700MHz

Impedance:

50 Ω

Coupling:

30±1.50 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

7/16(DIN)-Connector

PIM:(dBc)

-150dBc , 2X43dBm

Coupling Port:

QMA Female

V.S.W.R:

≤ 1.15

Waterproof:

RoHS Compliant

Item Name:

40dB Power Tapper

Mailine Loss:

0.10±0.1dB

Model:

PT-727-200-40CDQM

Insertion Loss:

0.10 dB

Frequency:

698-2700MHz

Impedance:

50 Ω

Coupling:

40±1.50 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

7/16(DIN)-Connector

PIM:(dBc)

-150dBc , 2X43dBm

Coupling Port:

QMA Female

V.S.W.R:

≤ 1.15

Waterproof:

RoHS Compliant

698-2700MHz 4.3/10 DIN + QMA Power Tappers

Item Name:

20dB Power Tapper

Mailine Loss:

0.10±0.1dB

Model:

PT-727-200-20C43DQM

Insertion Loss:

0.10 dB

Frequency:

698-2700MHz

Impedance:

50 Ω

Coupling:

20±1.50 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

4.3/10 DIN

PIM:(dBc)

-150dBc , 2X43dBm

Coupling Port:

QMA Female

V.S.W.R:

≤ 1.15

Waterproof:

RoHS Compliant

Item Name:

30dB Power Tapper

Mailine Loss:

0.10±0.1dB

Model:

PT-727-200-30C43DQM

Insertion Loss:

0.10 dB

Frequency:

698-2700MHz

Impedance:

50 Ω

Coupling:

30±1.50 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

4.3/10 DIN

PIM:(dBc)

-150dBc , 2X43dBm

Coupling Port:

QMA Female

V.S.W.R:

≤ 1.15

Waterproof:

RoHS Compliant

Item Name:

40dB Power Tapper

Mailine Loss:

0.10±0.1dB

Model:

PT-727-200-40C43DQM

Insertion Loss:

0.10 dB

Frequency:

698-2700MHz

Impedance:

50 Ω

Coupling:

40±1.50 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

4.3/10 DIN

PIM:(dBc)

-150dBc , 2X43dBm

Coupling Port:

QMA Female

V.S.W.R:

≤ 1.15

Waterproof:

RoHS Compliant

698-2700MHz N + QMA Power Tapper

Item Name:

20dB Power Tapper

Mailine Loss:

0.10±0.1dB

Model:

PT-727-200-20CNQM

Insertion Loss:

0.10 dB

Frequency:

698-2700MHz

Impedance:

50 Ω

Coupling:

20±1.50 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Connector

PIM:(dBc)

-150dBc , 2X43dBm

Coupling Port:

QMA Female

V.S.W.R:

≤ 1.15

Waterproof:

RoHS Compliant

Item Name:

30dB Power Tapper

Mailine Loss:

0.10±0.1dB

Model:

PT-727-200-30CNQM

Insertion Loss:

0.10 dB

Frequency:

698-2700MHz

Impedance:

50 Ω

Coupling:

30±1.50 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Connector

PIM:(dBc)

-150dBc , 2X43dBm

Coupling Port:

QMA Female

V.S.W.R:

≤ 1.15

Waterproof:

RoHS Compliant

Item Name:

40dB Power Tapper

Mailine Loss:

0.10±0.1dB

Model:

PT-727-200-40CNQM

Insertion Loss:

0.10 dB

Frequency:

698-2700MHz

Impedance:

50 Ω

Coupling:

40±1.50 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

N-Connector

PIM:(dBc)

-150dBc , 2X43dBm

Coupling Port:

QMA Female

V.S.W.R:

≤ 1.15

Waterproof:

RoHS Compliant

698-2700MHz SMA Power Tappers

Item Name:

20dB Power Tapper

Mailine Loss:

0.10±0.1dB

Model:

PT-727-200-20CSM

Insertion Loss:

0.10 dB

Frequency:

698-2700MHz

Impedance:

50 Ω

Coupling:

20±1.50 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

SMA-Connector

PIM:(dBc)

-150dBc , 2X43dBm

Coupling Port:

SMA Male/ Female

V.S.W.R:

≤ 1.15

Waterproof:

RoHS Compliant

Item Name:

30dB Power Tapper

Mailine Loss:

0.10±0.1dB

Model:

PT-727-200-30CSM

Insertion Loss:

0.10 dB

Frequency:

698-2700MHz

Impedance:

50 Ω

Coupling:

30±1.50 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

SMA-Connector

PIM:(dBc)

-150dBc , 2X43dBm

Coupling Port:

SMA Male/ Female

V.S.W.R:

≤ 1.15

Waterproof:

RoHS Compliant

Item Name:

40dB Power Tapper

Mailine Loss:

0.10±0.1dB

Model:

PT-727-200-40CSM

Insertion Loss:

0.10 dB

Frequency:

698-2700MHz

Impedance:

50 Ω

Coupling:

40±1.50 dB

Temperature:

-35℃- +75℃

Power:

200W Average

Connector:

SMA-Connector

PIM:(dBc)

-150dBc , 2X43dBm

Coupling Port:

SMA Male/ Female

V.S.W.R:

≤ 1.15

Waterproof:

RoHS Compliant

350-3800MHz(575-3800MHz) Power Tappers

Item Name:

5dB Power Tapper

Mailine Loss:

5.0 dB

Model:

PT-338-200-5CNI

Insertion Loss:

0.10 dB

Frequency:

350-3800MHz

Impedance:

50 Ω

Coupling:

5±1.50 dB

Temperature:

-35℃- +85℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-161dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.35

Waterproof:

IP65 , RoHS

Item Name:

6dB Power Tapper

Mailine Loss:

6.0 dB

Model:

PT-338-200-6CNI

Insertion Loss:

0.10 dB

Frequency:

350-3800MHz

Impedance:

50 Ω

Coupling:

6±1.50 dB

Temperature:

-35℃- +85℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-161dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

10dB Power Tapper

Mailine Loss:

10.0 dB

Model:

PT-338-200-10CNI

Insertion Loss:

0.10 dB

Frequency:

350-3800MHz

Impedance:

50 Ω

Coupling:

10±1.00 dB

Temperature:

-35℃- +85℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-161dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

13dB Power Tapper

Mailine Loss:

13.0 dB

Model:

PT-338-200-13CNI

Insertion Loss:

0.10 dB

Frequency:

350-3800MHz

Impedance:

50 Ω

Coupling:

13±1.00 dB

Temperature:

-35℃- +85℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-161dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

20dB Power Tapper

Mailine Loss:

20.0 dB

Model:

PT-338-200-20CNI

Insertion Loss:

0.10 dB

Frequency:

350-3800MHz

Impedance:

50 Ω

Coupling:

20±1.00 dB

Temperature:

-35℃- +85℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-161dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

30dB Power Tapper

Mailine Loss:

30.0 dB

Model:

PT-338-200-30CNI

Insertion Loss:

0.10 dB

Frequency:

350-3800MHz

Impedance:

50 Ω

Coupling:

30±1.20 dB

Temperature:

-35℃- +85℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-161dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

5dB Power Tapper

Mailine Loss:

5.0 dB

Model:

PT-338-200-5C43DI

Insertion Loss:

0.10 dB

Frequency:

350-3800MHz

Impedance:

50 Ω

Coupling:

5±1.50 dB

Temperature:

-35℃- +85℃

Power:

200W Average

Connector:

4.3-10/Female

PIM:(dBc)

-161dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.35

Waterproof:

IP65 , RoHS

Item Name:

6dB Power Tapper

Mailine Loss:

6.0 dB

Model:

PT-338-200-6C43DI

Insertion Loss:

0.10 dB

Frequency:

350-3800MHz

Impedance:

50 Ω

Coupling:

6±1.50 dB

Temperature:

-35℃- +85℃

Power:

200W Average

Connector:

4.3-10/Female

PIM:(dBc)

-161dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

10dB Power Tapper

Mailine Loss:

10.0 dB

Model:

PT-338-200-10C43DI

Insertion Loss:

0.10 dB

Frequency:

350-3800MHz

Impedance:

50 Ω

Coupling:

10±1.00 dB

Temperature:

-35℃- +85℃

Power:

200W Average

Connector:

4.3-10/Female

PIM:(dBc)

-161dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

13dB Power Tapper

Mailine Loss:

13.0 dB

Model:

PT-338-200-13C43DI

Insertion Loss:

0.10 dB

Frequency:

350-3800MHz

Impedance:

50 Ω

Coupling:

13±1.00 dB

Temperature:

-35℃- +85℃

Power:

200W Average

Connector:

4.3-10/Female

PIM:(dBc)

-161dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

15dB Power Tapper

Mailine Loss:

15.0 dB

Model:

PT-338-200-15C43DI

Insertion Loss:

0.10 dB

Frequency:

350-3800MHz

Impedance:

50 Ω

Coupling:

15±1.00 dB

Temperature:

-35℃- +85℃

Power:

200W Average

Connector:

4.3-10/Female

PIM:(dBc)

-161dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

20dB Power Tapper

Mailine Loss:

20.0 dB

Model:

PT-338-200-20C43DI

Insertion Loss:

0.10 dB

Frequency:

350-3800MHz

Impedance:

50 Ω

Coupling:

20±1.00 dB

Temperature:

-35℃- +85℃

Power:

200W Average

Connector:

4.3-10/Female

PIM:(dBc)

-161dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

30dB Power Tapper

Mailine Loss:

30.0 dB

Model:

PT-338-200-30C43DI

Insertion Loss:

0.10 dB

Frequency:

350-3800MHz

Impedance:

50 Ω

Coupling:

30±1.00 dB

Temperature:

-35℃- +85℃

Power:

200W Average

Connector:

4.3-10/Female

PIM:(dBc)

-161dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

694-3800MHz Power Tappers

Item Name:

5dB Power Tapper

Mailine Loss:

5.0 dB

Model:

PT-738-200-5CNI

Insertion Loss:

0.10 dB

Frequency:

694-3800MHz

Impedance:

50 Ω

Coupling:

5±1.50 dB

Temperature:

-35℃- +85℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-161dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.35

Waterproof:

IP65 , RoHS

Item Name:

6dB Power Tapper

Mailine Loss:

6.0 dB

Model:

PT-738-200-6CNI

Insertion Loss:

0.10 dB

Frequency:

694-3800MHz

Impedance:

50 Ω

Coupling:

6±1.50 dB

Temperature:

-35℃- +85℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-161dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

10dB Power Tapper

Mailine Loss:

10.0 dB

Model:

PT-738-200-10CNI

Insertion Loss:

0.10 dB

Frequency:

694-3800MHz

Impedance:

50 Ω

Coupling:

5±1.00 dB

Temperature:

-35℃- +85℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-161dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

13dB Power Tapper

Mailine Loss:

13.0 dB

Model:

PT-738-200-13CNI

Insertion Loss:

0.10 dB

Frequency:

694-3800MHz

Impedance:

50 Ω

Coupling:

13±1.00 dB

Temperature:

-35℃- +85℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-161dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

15dB Power Tapper

Mailine Loss:

15.0 dB

Model:

PT-738-200-15CNI

Insertion Loss:

0.10 dB

Frequency:

694-3800MHz

Impedance:

50 Ω

Coupling:

15±1.00 dB

Temperature:

-35℃- +85℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-161dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

20dB Power Tapper

Mailine Loss:

20.0 dB

Model:

PT-738-200-20CNI

Insertion Loss:

0.10 dB

Frequency:

694-3800MHz

Impedance:

50 Ω

Coupling:

20±1.00 dB

Temperature:

-35℃- +85℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-161dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

30dB Power Tapper

Mailine Loss:

30.0 dB

Model:

PT-738-200-30CNI

Insertion Loss:

0.10 dB

Frequency:

694-3800MHz

Impedance:

50 Ω

Coupling:

30±1.20 dB

Temperature:

-35℃- +85℃

Power:

200W Average

Connector:

N-Female

PIM:(dBc)

-161dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

5dB Power Tapper

Mailine Loss:

5.0 dB

Model:

PT-738-200-5C43DI

Insertion Loss:

0.10 dB

Frequency:

690-3800MHz

Impedance:

50 Ω

Coupling:

5±1.50 dB

Temperature:

-35℃- +85℃

Power:

200W Average

Connector:

4.3-10/Female

PIM:(dBc)

-161dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.35

Waterproof:

IP65 , RoHS

Item Name:

6dB Power Tapper

Mailine Loss:

6.0 dB

Model:

PT-738-200-6C43DI

Insertion Loss:

0.10 dB

Frequency:

690-3800MHz

Impedance:

50 Ω

Coupling:

6±1.50 dB

Temperature:

-35℃- +85℃

Power:

200W Average

Connector:

4.3-10/Female

PIM:(dBc)

-161dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

10dB Power Tapper

Mailine Loss:

10.0 dB

Model:

PT-738-200-10C43DI

Insertion Loss:

0.10 dB

Frequency:

690-3800MHz

Impedance:

50 Ω

Coupling:

10±1.00 dB

Temperature:

-35℃- +85℃

Power:

200W Average

Connector:

4.3-10/Female

PIM:(dBc)

-161dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

13dB Power Tapper

Mailine Loss:

13.0 dB

Model:

PT-738-200-13C43DI

Insertion Loss:

0.10 dB

Frequency:

690-3800MHz

Impedance:

50 Ω

Coupling:

13±1.00 dB

Temperature:

-35℃- +85℃

Power:

200W Average

Connector:

4.3-10/Female

PIM:(dBc)

-161dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

15dB Power Tapper

Mailine Loss:

15.0 dB

Model:

PT-738-200-15C43DI

Insertion Loss:

0.10 dB

Frequency:

690-3800MHz

Impedance:

50 Ω

Coupling:

15±1.00 dB

Temperature:

-35℃- +85℃

Power:

200W Average

Connector:

4.3-10/Female

PIM:(dBc)

-161dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

20dB Power Tapper

Mailine Loss:

20.0 dB

Model:

PT-738-200-20C43DI

Insertion Loss:

0.10 dB

Frequency:

690-3800MHz

Impedance:

50 Ω

Coupling:

20±1.00 dB

Temperature:

-35℃- +85℃

Power:

200W Average

Connector:

4.3-10/Female

PIM:(dBc)

-161dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

30dB Power Tapper

Mailine Loss:

30.0 dB

Model:

PT-738-200-30C43DI

Insertion Loss:

0.10 dB

Frequency:

690-3800MHz

Impedance:

50 Ω

Coupling:

30±1.20 dB

Temperature:

-35℃- +85℃

Power:

200W Average

Connector:

4.3-10/Female

PIM:(dBc)

-161dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

350-5930MHz(340-6000MHz) Power Tappers

Item Name:

5dB Power Tapper

Mailine Loss:

1.30±0.4 dB

Model:

PT-360-500-5CNI

Insertion Loss:

0.10 dB

Frequency:

350-5930MHz

Impedance:

50 Ω

Coupling:

4.8±0.8 dB

Temperature:

-35℃- +75℃

Power:

500W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

6dB Power Tapper

Mailine Loss:

1.30±0.4 dB

Model:

PT-360-500-6CNI

Insertion Loss:

0.10 dB

Frequency:

350-5930MHz

Impedance:

50 Ω

Coupling:

6±0.8 dB

Temperature:

-35℃- +75℃

Power:

500W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

8dB Power Tapper

Mailine Loss:

1.30±0.4 dB

Model:

PT-360-500-8CNI

Insertion Loss:

0.10 dB

Frequency:

350-5930MHz

Impedance:

50 Ω

Coupling:

8±0.8 dB

Temperature:

-35℃- +75℃

Power:

500W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

10dB Power Tapper

Mailine Loss:

1.30±0.4 dB

Model:

PT-360-500-10CNI

Insertion Loss:

0.10 dB

Frequency:

350-5930MHz

Impedance:

50 Ω

Coupling:

10±0.8 dB

Temperature:

-35℃- +75℃

Power:

500W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

13dB Power Tapper

Mailine Loss:

1.30±0.4 dB

Model:

PT-360-500-13CNI

Insertion Loss:

0.10 dB

Frequency:

350-5930MHz

Impedance:

50 Ω

Coupling:

13±0.8 dB

Temperature:

-35℃- +75℃

Power:

500W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

15dB Power Tapper

Mailine Loss:

1.30±0.4 dB

Model:

PT-360-500-15CNI

Insertion Loss:

0.10 dB

Frequency:

350-5930MHz

Impedance:

50 Ω

Coupling:

15±0.8 dB

Temperature:

-35℃- +75℃

Power:

500W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

20dB Power Tapper

Mailine Loss:

1.30±0.4 dB

Model:

PT-360-500-20CNI

Insertion Loss:

0.10 dB

Frequency:

350-5930MHz

Impedance:

50 Ω

Coupling:

20±0.8 dB

Temperature:

-35℃- +75℃

Power:

500W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

30dB Power Tapper

Mailine Loss:

1.30±0.4 dB

Model:

PT-360-500-30CNI

Insertion Loss:

0.10 dB

Frequency:

350-5930MHz

Impedance:

50 Ω

Coupling:

30±0.8 dB

Temperature:

-35℃- +75℃

Power:

500W Average

Connector:

N-Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

5dB Power Tapper

Mailine Loss:

1.30±0.4 dB

Model:

PT-360-500-5C43DI

Insertion Loss:

0.10 dB

Frequency:

350-5930MHz

Impedance:

50 Ω

Coupling:

4.8±0.8 dB

Temperature:

-35℃- +75℃

Power:

500W Average

Connector:

4.3-10/Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

6dB Power Tapper

Mailine Loss:

1.30±0.4 dB

Model:

PT-360-500-6C43DI

Insertion Loss:

0.10 dB

Frequency:

350-5930MHz

Impedance:

50 Ω

Coupling:

6±0.8 dB

Temperature:

-35℃- +75℃

Power:

500W Average

Connector:

4.3-10/Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

8dB Power Tapper

Mailine Loss:

1.30±0.4 dB

Model:

PT-360-500-8C43DI

Insertion Loss:

0.10 dB

Frequency:

350-5930MHz

Impedance:

50 Ω

Coupling:

8±0.8 dB

Temperature:

-35℃- +75℃

Power:

500W Average

Connector:

4.3-10/Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

10dB Power Tapper

Mailine Loss:

1.30±0.4 dB

Model:

PT-360-500-10C43DI

Insertion Loss:

0.10 dB

Frequency:

350-5930MHz

Impedance:

50 Ω

Coupling:

10±0.8 dB

Temperature:

-35℃- +75℃

Power:

500W Average

Connector:

4.3-10/Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

13dB Power Tapper

Mailine Loss:

1.30±0.4 dB

Model:

PT-360-500-13C43DI

Insertion Loss:

0.10 dB

Frequency:

350-5930MHz

Impedance:

50 Ω

Coupling:

13±0.8 dB

Temperature:

-35℃- +75℃

Power:

500W Average

Connector:

4.3-10/Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

15dB Power Tapper

Mailine Loss:

1.30±0.4 dB

Model:

PT-360-500-15C43DI

Insertion Loss:

0.10 dB

Frequency:

350-5930MHz

Impedance:

50 Ω

Coupling:

15±0.8 dB

Temperature:

-35℃- +75℃

Power:

500W Average

Connector:

4.3-10/Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

20dB Power Tapper

Mailine Loss:

1.30±0.4 dB

Model:

PT-360-500-20C43DI

Insertion Loss:

0.10 dB

Frequency:

350-5930MHz

Impedance:

50 Ω

Coupling:

20±0.8 dB

Temperature:

-35℃- +75℃

Power:

500W Average

Connector:

4.3-10/Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Item Name:

30dB Power Tapper

Mailine Loss:

1.30±0.4 dB

Model:

PT-360-500-30C43DI

Insertion Loss:

0.10 dB

Frequency:

350-5930MHz

Impedance:

50 Ω

Coupling:

30±0.8 dB

Temperature:

-35℃- +75℃

Power:

500W Average

Connector:

4.3-10/Female

PIM:(dBc)

-163dBc , 2X43dBm

Annotation:

Indoor/Outdoor Use

V.S.W.R:

≤ 1.30

Waterproof:

IP65 , RoHS

Power Tappers Install Bracket

Item Name:

Install Bracket

Applicable:

5~15 dB Tapper

Model:

PT-IBL

Annotation:

Indoor/Outdoor Use

Material:

304SS

Waterproof:

RoHS Compliant

Item Name:

Install Bracket

Applicable:

20~50 dB Tapper

Model:

PT-IBH

Annotation:

Indoor/Outdoor Use

Material:

304SS

Waterproof:

RoHS Compliant

* Power Tapper Install Bracket Include.

** Can Custom Made with -168dBc @ 2X43dBm
