PRODUCT >> DIRECTIONAL COUPLER

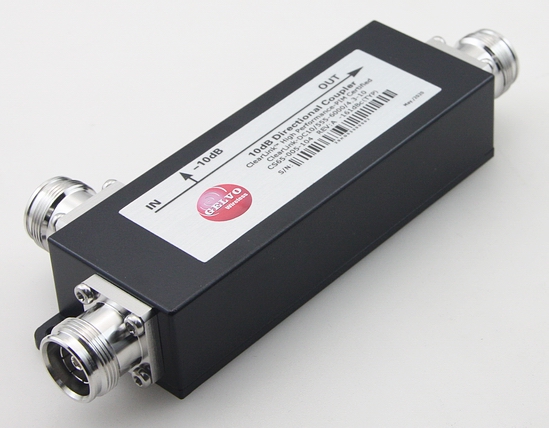

800-2500MHz Directional Coupler


 Item Name:  Directional Coupler(Air Dielectric)  V.S.W.R:  1.25
 Frequency:  800-2500MHz  Temperature:  -25- +85
 Power:  200W Average  Connector:  N-Female
 Impedance:  50 Ω  Annotation:  Indoor/Outdoor Use
 PIM:  -153Bc , 2X43dBm *  Waterproof:  IP65 , RoHS

Model Coupling(dB) Insertion Loss(dB) Directivity(dB) MAX Reflected Power
DC-825-200-5CNI 5 ±1.0 2.30 25 30
DC-825-200-6CNI 6 ±1.0 1.76 26 40
DC-825-200-7CNI 7 ±1.0 1.50 27 50
DC-825-200-8CNI 8 ±1.0 1.20 28 70
DC-825-200-10CNI 10 ±1.0 0.80 30 100
DC-825-200-13CNI 13 ±1.0 0.50 33 200
DC-825-200-15CNI 15 ±1.0 0.40 35 200
DC-825-200-20CNI 20 ±1.0 0.22 40 200
DC-825-200-30CNI 30 ±1.2 0.20 50 200
DC-825-200-40CNI 40 ±1.5 0.20 55 200

 Item Name:  Directional Coupler (Micro-Strip)  V.S.W.R:  1.25
 Frequency:  800-2500MHz  Temperature:  -25- +75
 Power:  200W Average  Connector:  N-Female
 Impedance:  50 Ω  Annotation:  Indoor/Outdoor Use
 PIM:  -140dBc , 2X43dBm  Waterproof:  IP65 , RoHS

Model Coupling(dB) Insertion Loss(dB) Directivity(dB) MAX Reflected Power
DC-825-200-3MNI 3 ±0.6 3.50 23 20
DC-825-200-5MNI 5 ±1.0 2.30 25 30
DC-825-200-6MNI 6 ±1.0 1.76 26 40
DC-825-200-7MNI 7 ±1.0 1.50 27 50
DC-825-200-8MNI 7 ±1.0 1.20 28 70
DC-825-200-10MNI 10 ±1.0 0.80 30 100
DC-825-200-13MNI 13 ±1.0 0.50 33 200
DC-825-200-15MNI 15 ±1.0 0.40 35 200
DC-825-200-20MNI 20 ±1.2 0.22 40 200
DC-825-200-30MNI 30 ±1.5 0.20 35 200
DC-825-200-40MNI 40 ±1.5 0.20 45 200

 Item Name:  Directional Coupler(Air Dielectric)  V.S.W.R:  1.25
 Frequency:  800-2500MHz  Temperature:  -35- +75
 Power:  200W Average  Connector:  N-Female
 Impedance:  50 Ω  Annotation:  Indoor Use
 PIM:  -130dBc , 2X43dBm  Waterproof:  IP65

Model Coupling(dB) Insertion Loss(dB) Directivity(dB) MAX Reflected Power
DC-825-200-5CNL 5 ±0.8 1.70 25 30
DC-825-200-6CNL 6 ±0.8 1.30 26 40
DC-825-200-7CNL 7 ±0.8 1.00 27 50
DC-825-200-10CNL 10 ±0.8 0.50 30 100
DC-825-200-15CNL 15 ±1.0 0.20 35 200
DC-825-200-20CNL 20 ±1.0 0.10 40 200
DC-825-200-25CNL 25 ±1.0 0.10 45 200
DC-825-200-30CNL 30 ±1.0 0.10 50 200
DC-825-200-40CNL 40 ±1.5 0.10 55 200

 Item Name:  Directional Coupler(Air Dielectric)  V.S.W.R:  1.25
 Frequency:  800-2500MHz  Temperature:  -25- +75
 Power:  200W Average  Connector:  7/16(DIN)/F
 Impedance:  50 Ω  Coupler Port:  DIN Male or Female
 PIM:  -153Bc , 2X43dBm *  Waterproof:  IP65 , RoHS

Model Coupling(dB) Insertion Loss(dB) Directivity(dB) MAX Reflected Power
DC-825-200-5CDI 5 ±1.0 2.30 25 30
DC-825-200-6CDI 6 ±1.0 1.76 26 40
DC-825-200-7CDI 7 ±1.0 1.50 27 50
DC-825-200-8CDI 8 ±1.0 1.20 28 70
DC-825-200-10CDI 10 ±1.0 0.80 30 100
DC-825-200-13CDI 13 ±1.0 0.50 33 200
DC-825-200-15CDI 15 ±1.0 0.40 35 200
DC-825-200-20CDI 20 ±1.0 0.22 40 200
DC-825-200-30CDI 30 ±1.2 0.20 50 200
DC-825-200-40CDI 40 ±1.5 0.20 55 200

 Item Name:  Directional Coupler(Air Dielectric)  V.S.W.R:  1.25
 Frequency:  800-2500MHz  Temperature:  -25- +75
 Power:  200W Average  Connector:  7/16(DIN)/F
 Impedance:  50 Ω  Coupler Port:  N Male or Female
 PIM:  -153Bc , 2X43dBm *  Waterproof:  IP65 , RoHS

Model Coupling(dB) Insertion Loss(dB) Directivity(dB) MAX Reflected Power
DC-825-200-5CBI 5 ±1.0 2.30 25 30
DC-825-200-6CBI 6 ±1.0 1.76 26 40
DC-825-200-7CBI 7 ±1.0 1.50 27 50
DC-825-200-8CBI 8 ±1.0 1.20 28 70
DC-825-200-10CBI 10 ±1.0 0.80 30 100
DC-825-200-13CBI 13 ±1.0 0.50 33 200
DC-825-200-15CBI 15 ±1.0 0.40 35 200
DC-825-200-20CBI 20 ±1.0 0.22 40 200
DC-825-200-30CBI 30 ±1.2 0.20 50 200
DC-825-200-40CBI 40 ±1.5 0.20 55 200

 Item Name:  Directional Coupler(Micro-Strip)  V.S.W.R:  1.25
 Frequency:  800-2500MHz  Temperature:  -25- +75
 Power:  200W Average  Connector:  7/16(DIN)/F
 Impedance:  50 Ω  Coupler Port:  DIN Male or Female
 PIM:  -140dBc , 2X43dBm  Waterproof:  IP65 , RoHS

Model Coupling(dB) Insertion Loss(dB) Directivity(dB) MAX Reflected Power
DC-825-200-5MDI 5 ±1.0 2.30 25 30
DC-825-200-6MDI 6 ±1.0 1.76 26 40
DC-825-200-7MDI 7 ±1.0 1.50 27 50
DC-825-200-8MDI 7 ±1.0 1.20 28 70
DC-825-200-10MDI 10 ±1.0 0.80 30 100
DC-825-200-13MDI 13 ±1.0 0.50 33 200
DC-825-200-15MDI 15 ±1.0 0.40 35 200
DC-825-200-20MDI 20 ±1.2 0.22 40 200
DC-825-200-30MDI 30 ±1.5 0.20 35 200
DC-825-200-40MDI 40 ±1.5 0.20 45 200

 Item Name:  Directional Coupler(Micro-Strip)  V.S.W.R:  1.25
 Frequency:  800-2500MHz  Temperature:  -25- +75
 Power:  200W Average  Connector:  7/16(DIN)/F
 Impedance:  50 Ω  Coupler Port:  N Male or Female
 PIM:  -140dBc , 2X43dBm  Waterproof:  IP65 , RoHS

Model Coupling(dB) Insertion Loss(dB) Directivity(dB) MAX Reflected Power
DC-825-200-5MBI 5 ±1.0 2.30 25 30
DC-825-200-6MBI 6 ±1.0 1.76 26 40
DC-825-200-7MBI 7 ±1.0 1.50 27 50
DC-825-200-8MBI 7 ±1.0 1.20 28 70
DC-825-200-10MBI 10 ±1.0 0.80 30 100
DC-825-200-13MBI 13 ±1.0 0.50 33 200
DC-825-200-15MBI 15 ±1.0 0.40 35 200
DC-825-200-20MBI 20 ±1.2 0.22 40 200
DC-825-200-30MBI 30 ±1.5 0.20 35 200
DC-825-200-40MBI 40 ±1.5 0.20 45 200

700-2700MHz Directional Coupler


 Item Name:  Directional Coupler(Air Dielectric)  V.S.W.R:  1.25
 Frequency:  698-2700MHz  Temperature:  -25- +85
 Power:  200W Average (300W MAX)  Connector:  N-Female
 Impedance:  50 Ω  Annotation:  Indoor/Outdoor Use
 PIM:   -153dBc@2X43dBm  Waterproof:  IP65 , RoHS

Model Coupling(dB) Insertion Loss(dB) Isolation(dB) MAX Reflected Power
DC-727-200-5CNI 5 ±1.0 2.30 25 30
DC-727-200-6CNI 6 ±1.0 1.76 26 40
DC-727-200-7CNI 7 ±1.0 1.50 27 50
DC-727-200-8CNI 8 ±1.0 1.20 28 70
DC-727-200-10CNI 10 ±1.0 0.80 30 100
DC-727-200-13CNI 13 ±1.0 0.50 33 200
DC-727-200-15CNI 15 ±1.0 0.40 35 200
DC-727-200-20CNI 20 ±1.0 0.22 40 200
DC-727-200-30CNI 30 ±1.2 0.20 50 200
DC-727-200-40CNI 40 ±1.5 0.20 55 200

 Item Name:  Directional Coupler(Air Dielectric)  V.S.W.R:  1.25
 Frequency:  698-2700MHz  Temperature:  -25- +85
 Power:  200W Average (300W MAX)  Connector:  N-Female
 Impedance:  50 Ω  Annotation:  Indoor/Outdoor Use
 PIM:   -160dBc@2X43dBm  Waterproof:  IP65 , RoHS

Model Coupling(dB) Insertion Loss(dB) Isolation(dB) MAX Reflected Power
DC-727-200-5CNI/H 5 ±1.0 2.30 25 30
DC-727-200-6CNI/H 6 ±1.0 1.76 26 40
DC-727-200-7CNI/H 7 ±1.0 1.50 27 50
DC-727-200-8CNI/H 8 ±1.0 1.20 28 70
DC-727-200-10CNI/H 10 ±1.0 0.80 30 100
DC-727-200-13CNI/H 13 ±1.0 0.50 33 200
DC-727-200-15CNI/H 15 ±1.0 0.40 35 200
DC-727-200-20CNI/H 20 ±1.0 0.22 40 200
DC-727-200-30CNI/H 30 ±1.2 0.20 50 200
DC-727-200-40CNI/H 40 ±1.5 0.20 55 200

 Item Name:  Directional Coupler(Micro-Strip)  V.S.W.R:  1.25
 Frequency:  698-2700MHz  Temperature:  -25- +85
 Power:  200W Average  Connector:  N-Female
 Impedance:  50 Ω  Annotation:  Indoor/Outdoor Use
 PIM:  -140dBc , 2X43dBm  Waterproof:  IP65 , RoHS

Model Coupling(dB) Insertion Loss(dB) Isolation(dB) MAX Reflected Power
DC-727-200-3MNI 3 ±0.6 3.50 23 20
DC-727-200-5MNI 5 ±1.0 2.30 25 30
DC-727-200-6MNI 6 ±1.0 1.76 26 40
DC-727-200-7MNI 7 ±1.0 1.50 27 50
DC-727-200-8MNI 7 ±1.0 1.20 28 70
DC-727-200-10MNI 10 ±1.0 0.80 30 100
DC-727-200-13MNI 13 ±1.0 0.50 33 200
DC-727-200-15MNI 15 ±1.0 0.40 35 200
DC-727-200-20MNI 20 ±1.2 0.22 40 200
DC-727-200-30MNI 30 ±1.5 0.20 35 200
DC-727-200-40MNI 40 ±1.5 0.20 45 200

 Item Name:  Directional Coupler(Micro-Strip)  V.S.W.R:  1.25
 Frequency:  698-2700MHz  Temperature:  -25- +75
 Power:  200W Average  Connector:  SMA Female
 Impedance:  50 Ω  Annotation:  Indoor Use
 PIM:  -140dBc , 2X43dBm  Waterproof:  IP65 , RoHS

Model Coupling(dB) Insertion Loss(dB) Isolation(dB) MAX Reflected Power
DC-727-200-5MSI 5 ±1.0 2.30 25 30
DC-727-200-6MSI 6 ±1.0 1.76 26 40
DC-727-200-7MSI 7 ±1.0 1.50 27 50
DC-727-200-8MSI 7 ±1.0 1.20 28 70
DC-727-200-10MSI 10 ±1.0 0.80 30 100
DC-727-200-13MSI 13 ±1.0 0.50 33 200
DC-727-200-15MSI 15 ±1.0 0.40 35 200
DC-727-200-20MSI 20 ±1.2 0.22 40 200
DC-727-200-30MSI 30 ±1.5 0.20 50 200

 Item Name:  Directional Coupler(Air Dielectric)  V.S.W.R:  1.25
 Frequency:  698-2700MHz  Temperature:  -25- +75
 Power:  200W Average  Connector:  7/16(DIN)/F
 Impedance:  50 Ω  Coupler Port:  DIN Male or Female
 PIM:  -153dBc@2X43dBm *  Waterproof:  IP65 , RoHS

Model Coupling(dB) Insertion Loss(dB) Isolation(dB) MAX Reflected Power
DC-727-200-5CDI 5 ±1.0 2.30 25 35
DC-727-200-6CDI 6 ±1.0 1.76 26 40
DC-727-200-7CDI 7 ±1.0 1.50 27 50
DC-727-200-8CDI 8 ±1.0 1.20 28 70
DC-727-200-10CDI 10 ±1.0 0.80 30 100
DC-727-200-13CDI 13 ±1.0 0.50 33 200
DC-727-200-15CDI 15 ±1.0 0.40 35 200
DC-727-200-20CDI 20 ±1.0 0.22 40 200
DC-727-200-30CDI 30 ±1.2 0.20 50 200
DC-727-200-40CDI 40 ±1.5 0.20 55 200

 Item Name:  Directional Coupler(Air Dielectric)  V.S.W.R:  1.25
 Frequency:  698-2700MHz  Temperature:  -25- +75
 Power:  200W Average  Connector:  7/16(DIN)/F
 Impedance:  50 Ω  Coupler Port:  DIN Male or Female
 PIM:  -160dBc@2X43dBm  Waterproof:  IP65 , RoHS

Model Coupling(dB) Insertion Loss(dB) Isolation(dB) MAX Reflected Power
DC-727-200-5CDI/H 5 ±1.0 2.30 25 35
DC-727-200-6CDI/H 6 ±1.0 1.76 26 40
DC-727-200-7CDI/H 7 ±1.0 1.50 27 50
DC-727-200-8CDI/H 8 ±1.0 1.20 28 70
DC-727-200-10CDI/H 10 ±1.0 0.80 30 100
DC-727-200-13CDI/H 13 ±1.0 0.50 33 200
DC-727-200-15CDI/H 15 ±1.0 0.40 35 200
DC-727-200-20CDI/H 20 ±1.0 0.22 40 200
DC-727-200-30CDI/H 30 ±1.2 0.20 50 200
DC-727-200-40CDI/H 40 ±1.5 0.20 55 200

 Item Name:  Directional Coupler(Air Dielectric)  V.S.W.R:  1.25
 Frequency:  698-2700MHz  Temperature:  -25- +75
 Power:  200W Average  Connector:  7/16(DIN)/F+N/F
 Impedance:  50 Ω  Coupler Port:  N Male or Female
 PIM:   -153dBc@2X43dBm *  Waterproof:  IP65 , RoHS

Model Coupling(dB) Insertion Loss(dB) Isolation(dB) MAX Reflected Power
DC-727-200-5CBI 5 ±1.0 2.30 25 35
DC-727-200-6CBI 6 ±1.0 1.76 26 40
DC-727-200-7CBI 7 ±1.0 1.50 27 50
DC-727-200-8CBI 8 ±1.0 1.20 28 70
DC-727-200-10CBI 10 ±1.0 0.80 30 100
DC-727-200-13CBI 13 ±1.0 0.50 33 200
DC-727-200-15CBI 15 ±1.0 0.40 35 200
DC-727-200-20CBI 20 ±1.0 0.22 40 200
DC-727-200-30CBI 30 ±1.2 0.20 50 200
DC-727-200-40CBI 40 ±1.5 0.20 55 200

 Item Name:  Directional Coupler(Micro-Strip)  V.S.W.R:  1.25
 Frequency:  698-2700MHz  Temperature:  -25- +75
 Power:  200W Average  Connector:  7/16(DIN)/F
 Impedance:  50Ω  Coupler Port:  DIN Male or Female
 PIM:  -140dBc , 2X43dBm  Waterproof:  IP65 , RoHS

Model Coupling(dB) Insertion Loss(dB) Isolation(dB) MAX Reflected Power
DC-727-200-5MDI 5 ±1.0 2.30 25 30
DC-727-200-6MDI 6 ±1.0 1.76 26 40
DC-727-200-7MDI 7 ±1.0 1.50 27 50
DC-727-200-8MDI 7 ±1.0 1.20 28 70
DC-727-200-10MDI 10 ±1.0 0.80 30 100
DC-727-200-13MDI 13 ±1.0 0.50 33 200
DC-727-200-15MDI 15 ±1.0 0.40 35 200
DC-727-200-20MDI 20 ±1.2 0.22 40 200
DC-727-200-30MDI 30 ±1.5 0.20 50 200
DC-727-200-40MDI 40 ±1.5 0.20 55 200

 Item Name:  Directional Coupler(Micro-Strip)  V.S.W.R:  1.25
 Frequency:  698-2700MHz  Temperature:  -25- +75
 Power:  200W Average  Connector:  7/16(DIN)/F+N/F
 Impedance:  50Ω  Coupler Port:  N Male or Female
 PIM:  -140dBc , 2X43dBm  Waterproof:  IP65 , RoHS

Model Coupling(dB) Insertion Loss(dB) Isolation(dB) MAX Reflected Power
DC-727-200-5MBI 5 ±1.0 2.30 25 30
DC-727-200-6MBI 6 ±1.0 1.76 26 40
DC-727-200-7MBI 7 ±1.0 1.50 27 50
DC-727-200-8MBI 7 ±1.0 1.20 28 70
DC-727-200-10MBI 10 ±1.0 0.80 30 100
DC-727-200-13MBI 13 ±1.0 0.50 33 200
DC-727-200-15MBI 15 ±1.0 0.40 35 200
DC-727-200-20MBI 20 ±1.2 0.22 40 200
DC-727-200-30MBI 30 ±1.5 0.20 50 200
DC-727-200-40MBI 40 ±1.5 0.20 55 200

 Item Name:  Directional Coupler(Air Dielectric)  V.S.W.R:  1.25
 Frequency:  698-2700MHz  Temperature:  -25- +85
 Power:  200W Average (300W MAX)  Connector:  4.1/9.5 MINI DIN/F
 Impedance:  50 Ω (4.1/9.5 MINI DIN)  Annotation:  Indoor/Outdoor Use
 PIM:  -160dBc , 2X43dBm  Waterproof:  IP65 , RoHS

Model Coupling(dB) Insertion Loss(dB) Isolation(dB) MAX Reflected Power
DC-727-200-5C41DI 5 ±1.0 2.30 25 30
DC-727-200-6C41DI 6 ±1.0 1.76 26 40
DC-727-200-7C41DI 7 ±1.0 1.50 27 50
DC-727-200-8C41DI 8 ±1.0 1.20 28 70
DC-727-200-10C41DI 10 ±1.0 0.80 30 100
DC-727-200-13C41DI 13 ±1.0 0.50 33 200
DC-727-200-15C41DI 15 ±1.0 0.40 35 200
DC-727-200-20C41DI 20 ±1.0 0.22 40 200
DC-727-200-30C41DI 30 ±1.2 0.20 50 200
DC-727-200-40C41DI 40 ±1.5 0.20 55 200

 Item Name:  Directional Coupler(Air Dielectric)  V.S.W.R:  1.25
 Frequency:  698-2700MHz  Temperature:  -25- +85
 Power:  200W Average (300W MAX)  Connector:  4.3/10 DIN/F
 Impedance:  50 Ω (4.3/10 DIN)  Annotation:  Indoor/Outdoor Use
 PIM:  -160dBc , 2X43dBm  Waterproof:  IP65 , RoHS

Model Coupling(dB) Insertion Loss(dB) Isolation(dB) MAX Reflected Power
DC-727-200-5C43DI 5 ±1.0 2.30 25 30
DC-727-200-6C43DI 6 ±1.0 1.76 26 40
DC-727-200-7C43DI 7 ±1.0 1.50 27 50
DC-727-200-8C43DI 8 ±1.0 1.20 28 70
DC-727-200-10C43DI 10 ±1.0 0.80 30 100
DC-727-200-13C43DI 13 ±1.0 0.50 33 200
DC-727-200-15C43DI 15 ±1.0 0.40 35 200
DC-727-200-20C43DI 20 ±1.0 0.22 40 200
DC-727-200-30C43DI 30 ±1.2 0.20 50 200
DC-727-200-40C43DI 40 ±1.5 0.20 55 200

560-2700MHz (578-2700MHz) Directional Coupler


 Item Name:  Directional Coupler(Air Dielectric)  V.S.W.R:  1.25
 Frequency:  560-2700MHz  Temperature:  -25- +85
 Power:  200W Average (300W MAX)  Connector:  N-Female
 Impedance:  50 Ω  Annotation:  Indoor/Outdoor Use
 PIM:   -160dBc@2X43dBm  Waterproof:  IP65 , RoHS

Model Coupling(dB) Insertion Loss(dB) Isolation(dB) MAX Reflected Power
DC-527-200-5CNI 5 ±1.0 2.30 25 30
DC-527-200-6CNI 6 ±1.0 1.76 26 40
DC-527-200-7CNI 7 ±1.0 1.50 27 50
DC-527-200-8CNI 8 ±1.0 1.20 28 70
DC-527-200-10CNI 10 ±1.0 0.80 30 100
DC-527-200-13CNI 13 ±1.0 0.50 33 200
DC-527-200-15CNI 15 ±1.0 0.40 35 200
DC-527-200-20CNI 20 ±1.0 0.22 40 200
DC-527-200-30CNI 30 ±1.2 0.20 50 200
DC-527-200-40CNI 40 ±1.5 0.20 55 200

 Item Name:  Directional Coupler(Air Dielectric)  V.S.W.R:  1.25
 Frequency:  560-2700MHz  Temperature:  -25- +85
 Power:  200W Average (300W MAX)  Connector:  4.3/10 DIN/F
 Impedance:  50 Ω (4.3/10 DIN)  Annotation:  Indoor/Outdoor Use
 PIM:  -160dBc , 2X43dBm  Waterproof:  IP65 , RoHS

Model Coupling(dB) Insertion Loss(dB) Isolation(dB) MAX Reflected Power
DC-527-200-5C43DI 5 ±1.0 2.30 25 30
DC-527-200-6C43DI 6 ±1.0 1.76 26 40
DC-527-200-7C43DI 7 ±1.0 1.50 27 50
DC-527-200-8C43DI 8 ±1.0 1.20 28 70
DC-527-200-10C43DI 10 ±1.0 0.80 30 100
DC-527-200-13C43DI 13 ±1.0 0.50 33 200
DC-527-200-15C43DI 15 ±1.0 0.40 35 200
DC-527-200-20C43DI 20 ±1.0 0.22 40 200
DC-527-200-30C43DI 30 ±1.2 0.20 50 200
DC-527-200-40C43DI 40 ±1.5 0.20 55 200

340-2700MHz Directional Coupler


 Item Name:  Directional Couplerr(Air Dielectric)  V.S.W.R:  1.25
 Frequency:  340-2700MHz  Temperature:  -25- +75
 Power:  200W Average  Connector:  N-Female
 Impedance:  50 Ω  Annotation:  Indoor/Outdoor Use
 PIM:  -153dBc , 2X43dBm  Waterproof:  IP65 , RoHS

Model Coupling(dB) Insertion Loss(dB) Directivity(dB) MAX Reflected Power
DC-327-200-6CNI/H 6 ±1.5 1.80 20 40
DC-327-200-10CNI/H 10 ±1.7 0.90 20 100
DC-327-200-15CNI/H 15 ±1.7 0.50 20 200
DC-327-200-20CNI/H 20 ±1.8 0.40 20 200
DC-327-200-30CNI/H 30 ±1.8 0.30 20 200

380-2700MHz Directional Coupler


 Item Name:  Directional Coupler(Micro-Strip)  V.S.W.R:  1.30
 Frequency:  380-2700MHz  Temperature:  -25- +75
 Power:  200W Average  Connector:  N-Female
 Impedance:  50 Ω  Annotation:  Indoor/Outdoor Use
 PIM:  -140dBc , 2X43dBm  Waterproof:  IP65 , RoHS

Model Coupling(dB) Insertion Loss(dB) Directivity(dB) MAX Reflected Power
DC-327-200-6MNI 6 ±1.0 1.80 20 40
DC-327-200-10MNI 10 ±1.0 0.90 20 100
DC-327-200-15MNI 15 ±1.0 0.50 20 200
DC-327-200-20MNI 20 ±1.2 0.40 20 200
DC-327-200-30MNI 30 ±1.5 0.30 20 200

 Item Name:  Directional Couplerr(Air Dielectric)  V.S.W.R:  1.25
 Frequency:  380-2700MHz  Temperature:  -25- +75
 Power:  200W Average  Connector:  N-Female
 Impedance:  50 Ω  Annotation:  Indoor/Outdoor Use
 PIM:  -160dBc , 2X43dBm  Waterproof:  IP65 , RoHS

Model Coupling(dB) Insertion Loss(dB) Directivity(dB) MAX Reflected Power
DC-327-200-6CNI/H 6 ±1.0 1.80 20 40
DC-327-200-10CNI/H 10 ±1.0 0.90 20 100
DC-327-200-15CNI/H 15 ±1.0 0.50 20 200
DC-327-200-20CNI/H 20 ±1.2 0.40 20 200
DC-327-200-30CNI/H 30 ±1.5 0.30 20 200

470-2500MHz Directional Coupler


 Item Name:  Directional Coupler(Air Dielectric)  V.S.W.R:  1.25
 Frequency:  470-2500MHz  Temperature:  -25- +75
 Power:  100W Average  Connector:  N-Female
 Impedance:  50 Ω  Annotation:  Indoor Use
 PIM:  -130dBc , 2X43dBm  Waterproof:  IP65

Model Coupling(dB) Insertion Loss(dB) Directivity(dB) MAX Reflected Power
DC-425-100-5CND 5 ±1.0 1.70 20 30
DC-425-100-6CND 6 ±1.0 1.30 20 40
DC-425-100-7CND 7 ±1.0 1.00 20 50
DC-425-100-10CND 10 ±1.0 0.50 20 100
DC-425-100-15CND 15 ±1.2 0.20 20 200
DC-425-100-20CND 20 ±1.2 0.10 20 200

800-3500MHz Directional Coupler


 Item Name:  Directional Coupler(Micro-Strip)  V.S.W.R:  1.35
 Frequency:  800-3500MHz  Temperature:  -25- +75
 Power:  200W Average  Connector:  N-Female
 Impedance:  50 Ω  Annotation:  Indoor/Outdoor Use
 PIM:  -130dBc , 2X43dBm  Waterproof:  IP65 , RoHS

Model Coupling(dB) Insertion Loss(dB) Directivity(dB) MAX Reflected Power
DC-835-200-5MNI 5 ±0.8 2.30 20 30
DC-835-200-6MNI 6 ±0.8 1.70 20 40
DC-835-200-7MNI 7 ±0.8 1.50 20 50
DC-835-200-8MNI 8 ±0.8 1.20 20 70
DC-835-200-10MNI 10 ±1.0 0.80 20 100
DC-835-200-15MNI 15 ±1.0 0.40 20 200
DC-835-200-20MNI 20 ±1.0 0.30 20 200
DC-835-200-30MNI 30 ±1.5 0.20 20 200

700-3800MHz Directional Coupler


 Item Name:  Directional Coupler(Micro-Strip)  V.S.W.R:  1.35
 Frequency:  698-3800MHz  Temperature:  -25- +75
 Power:  200W Average  Connector:  N-Female
 Impedance:  50 Ω  Annotation:  Indoor Use
 PIM:  -130dBc , 2X43dBm  Waterproof:  IP65 , RoHS

Model Coupling(dB) Insertion Loss(dB) Directivity(dB) MAX Reflected Power
DC-738-200-6MNI 6 ±1.0 1.80 0.20 40
DC-738-200-10MNI 10 ±1.0 0.90 0.20 100
DC-738-200-15MNI 15 ±1.0 0.50 0.20 200
DC-738-200-20MNI 20 ±1.0 0.40 0.20 200

120-240MHz Directional Coupler


 Item Name:  Directional Coupler(Micro-Strip)  V.S.W.R:  1.25
 Frequency:  120-240MHz  Temperature:  -25- +75
 Power:  200W Average  Connector:  N-Female
 Impedance:  50 Ω  Annotation:  Indoor/Outdoor Use
 PIM:  -140dBc , 2X43dBm  Waterproof:  IP65 , RoHS

Model Coupling(dB) Insertion Loss(dB) Directivity(dB) MAX Reflected Power
DC-12.24-200-6MNI 6 ±1.0 1.76 20 40
DC-12.24-200-10MNI 10 ±1.0 0.80 20 100

300-500MHz Directional Coupler


 Item Name:  Directional Coupler(Micro-Strip)  V.S.W.R:  1.25
 Frequency:  300-500MHz  Temperature:  -25- +75
 Power:  200W Average  Connector:  N-Female
 Impedance:  50 Ω  Annotation:  Indoor/Outdoor Use
 PIM:  -140dBc , 2X43dBm  Waterproof:  IP65 , RoHS

Model Coupling(dB) Insertion Loss(dB) Directivity(dB) MAX Reflected Power
DC-30.50-200-6MNI 6 ±1.0 1.76 20 40
DC-30.50-200-10MNI 10 ±1.0 0.80 20 100
DC-30.50-200-15MNI 15 ±1.0 0.40 20 200
DC-30.50-200-20MNI 20 ±1.0 0.22 20 200
DC-30.50-200-30MNI 30 ±1.0 0.20 20 200

300-960MHz Directional Coupler


 Item Name:  Directional Coupler(Micro-Strip)  V.S.W.R:  1.25
 Frequency:  300-960MHz  Temperature:  -25- +75
 Power:  200W Average  Connector:  N-Female
 Impedance:  50 Ω  Annotation:  Indoor/Outdoor Use
 PIM:  -140dBc , 2X43dBm  Waterproof:  IP65 , RoHS

Model Coupling(dB) Insertion Loss(dB) Directivity(dB) MAX Reflected Power
DC-30.96-200-6MNI 6 ±1.0 1.76 20 40
DC-30.96-200-10MNI 10 ±1.0 0.80 20 100
DC-30.96-200-15MNI 15 ±1.0 0.40 20 200
DC-30.96-200-20MNI 20 ±1.0 0.22 20 200
DC-30.96-200-30MNI 30 ±1.2 0.20 20 200

  * Can be Custom Made with -160dBc @ 2X43dBm

DIRECTIONAL COUPLER
